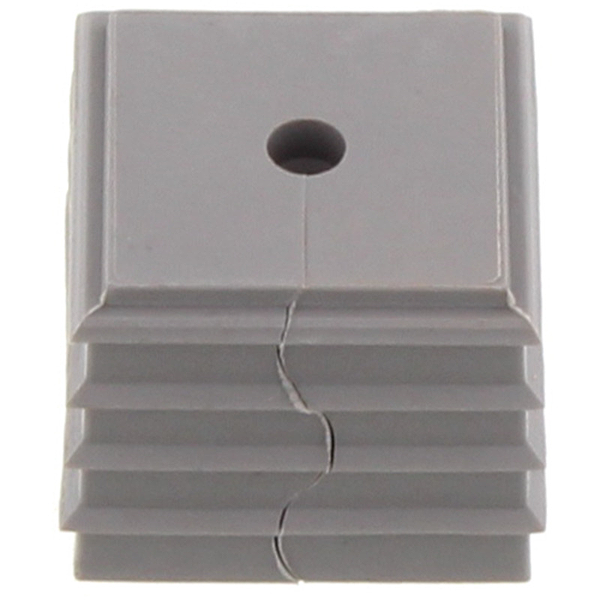

Image copyright: Weidmueller
Weidmueller 2583400000
CABTITE SE 3-4 SML GY
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | CABTITE SE 3-4 SML GY |
| Order No.: | 2583400000 |
| Version: | Sealing element, Cabtite (cable entry system), TPE, Light Grey, Height: 20.3 mm, Width: 20.3, Depth: 17.7 mm, -40 °C…90 °C, IP54, IP65, IP66 |
| GTIN (EAN): | 4050118616958 |
| Qty.: | 10 pc(s). |
| Width: | 20.3 |
| Width (inches): | 0.799 inch |
| Height: | 20.3 mm |
| Height (inches): | 0.799 inch |
| Depth: | 17.7 mm |
| Depth (inches): | 0.697 inch |
| Net weight: | 7.28 g |
| UL 94 flammability rating: | V-0 |
| Sealing element: | 1 small sealing element |
| Outer cable diameter, min.: | 3 mm |
| Outer cable diameter, max.: | 4 mm |
| Halogen: | No |
| Silicone: | No |
| Material: | TPE |
| ETIM 6.0: | EC000879 |
| ETIM 7.0: | EC000879 |
| eClass 9.0: | 27-14-44-21 |
| eClass 9.1: | 27-14-44-21 |
| eClass 10.0: | 27-14-44-21 |
| ROHS: | Conform |
| Type: | CABTITE SE 3-4 SML GY |
| Order No.: | 2583400000 |
| Version: | Sealing element, Cabtite (cable entry system), TPE, Light Grey, Height: 20.3 mm, Width: 20.3, Depth: 17.7 mm, -40 °C…90 °C, IP54, IP65, IP66 |
| GTIN (EAN): | 4050118616958 |
| Qty.: | 10 pc(s). |
| Width: | 20.3 |
| Width (inches): | 0.799 inch |
| Height: | 20.3 mm |
| Height (inches): | 0.799 inch |
| Depth: | 17.7 mm |
| Depth (inches): | 0.697 inch |
| Net weight: | 7.28 g |
| UL 94 flammability rating: | V-0 |
| Sealing element: | 1 small sealing element |
| Outer cable diameter, min.: | 3 mm |
| Outer cable diameter, max.: | 4 mm |
| Halogen: | No |
| Silicone: | No |
| Material: | TPE |
| ETIM 6.0: | EC000879 |
| ETIM 7.0: | EC000879 |
| eClass 9.0: | 27-14-44-21 |
| eClass 9.1: | 27-14-44-21 |
| eClass 10.0: | 27-14-44-21 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.007 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
