Product
Weidmueller
2576120000
DRMKITP 24VDC 2CO LD/PB
Request a Quote

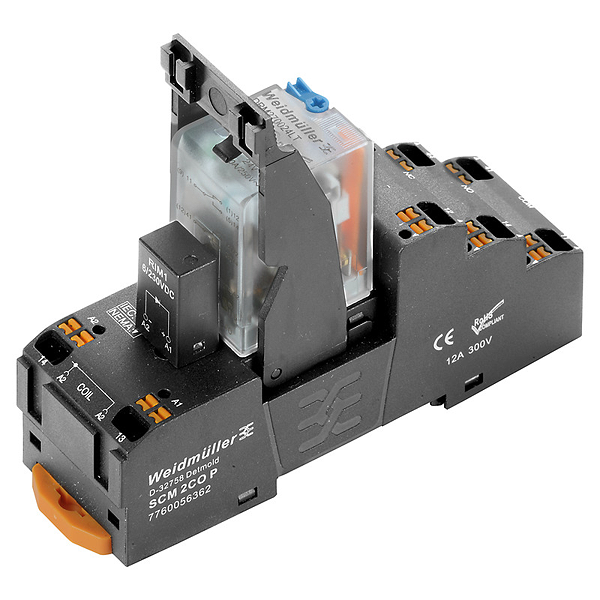

Image copyright: Weidmueller
Weidmueller 2576120000
DRMKITP 24VDC 2CO LD/PB
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | DRMKITP 24VDC 2CO LD/PB |
| Order No.: | 2576120000 |
| Version: | D-SERIES DRM, Relay module, Number of contacts: 2, CO contact with test button AgNi 0,15 μm Au, Rated control voltage: 24 V DC, Continuous current: 10 A, PUSH IN |
| GTIN (EAN): | 4050118585872 |
| Qty.: | 10 pc(s). |
| Width: | 30.6 mm |
| Width (inches): | 1.205 inch |
| Height: | 101.8 mm |
| Height (inches): | 4.008 inch |
| Depth: | 82.3 mm |
| Depth (inches): | 3.24 inch |
| Net weight: | 100.2 g |
| Humidity: | 35...85 % rel. humidity, no condensation |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...60 °C |
| Storage temperature: | -40 °C...70 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Rated control voltage: | 24 V DC |
| Rated current DC: | 36.9 mA |
| Power rating: | 0.9 W |
| Pull-in/drop-out voltage, typ.: | 18 V / 2.4 V DC |
| Coil resistance: | 650 Ω ± 10 % |
| Status indicator: | Green LED |
| Protective circuit: | Free-wheeling diode |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 250 V |
| Continuous current: | 10 A |
| Inrush current: | 20 A / 50 ms |
| AC switching capacity (resistive), max.: | 2500 VA |
| DC switching capacity (resistive), max.: | 240 W @ 24 V |
| Switch-on delay: | < 20 ms |
| Switch-off delay: | < 20 ms |
| Min. switching power: | 10 mA @ 12 V, 100 mA @ 5 V |
| Max. switching frequency at rated load: | 0.1 Hz |
| Contact type: | 2 CO contact with test button (AgNi 0,15 μm Au) |
| Contact resistance: | ≤ 50 mΩ |
| Rail: | TS 35 |
| Test button: | yes (lockable) |
| Mechanical switch position indicator: | Yes |
| Colour: | black |
| Rated voltage: | 250 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Insulating material group: | C |
| Protection degree: | IP20 |
| Creepage and clearance distance input – output: | ≥ 5.5 mm |
| Certificate no. (cURus) relay: | E312083 |
| Certificate no. (cURus) base: | E355547 |
| Wire connection method: | PUSH IN |
| Stripping length, rated connection: | 10 mm |
| Clamping range, rated connection: | 1.5 mm² |
| Clamping range, min.: | 0.14 mm² |
| Clamping range, max.: | 1.5 mm² |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 16 |
| Wire cross-section, solid, min.: | 0.14 mm² |
| Wire cross-section, solid, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.14 mm² |
| Wire connection cross section, finely stranded, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.14 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.14 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1.5 mm² |
| Blade size: | 0.4 x 2.5 mm |
| ETIM 6.0: | EC001437 |
| ETIM 7.0: | EC001437 |
| eClass 9.0: | 27-37-16-01 |
| eClass 9.1: | 27-37-16-01 |
| eClass 10.0: | 27-37-16-01 |
| ROHS: | Conform |
| Type: | DRMKITP 24VDC 2CO LD/PB |
| Order No.: | 2576120000 |
| Version: | D-SERIES DRM, Relay module, Number of contacts: 2, CO contact with test button AgNi 0,15 μm Au, Rated control voltage: 24 V DC, Continuous current: 10 A, PUSH IN |
| GTIN (EAN): | 4050118585872 |
| Qty.: | 10 pc(s). |
| Width: | 30.6 mm |
| Width (inches): | 1.205 inch |
| Height: | 101.8 mm |
| Height (inches): | 4.008 inch |
| Depth: | 82.3 mm |
| Depth (inches): | 3.24 inch |
| Net weight: | 100.2 g |
| Humidity: | 35...85 % rel. humidity, no condensation |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...60 °C |
| Storage temperature: | -40 °C...70 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Rated control voltage: | 24 V DC |
| Rated current DC: | 36.9 mA |
| Power rating: | 0.9 W |
| Pull-in/drop-out voltage, typ.: | 18 V / 2.4 V DC |
| Coil resistance: | 650 Ω ± 10 % |
| Status indicator: | Green LED |
| Protective circuit: | Free-wheeling diode |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 250 V |
| Continuous current: | 10 A |
| Inrush current: | 20 A / 50 ms |
| AC switching capacity (resistive), max.: | 2500 VA |
| DC switching capacity (resistive), max.: | 240 W @ 24 V |
| Switch-on delay: | < 20 ms |
| Switch-off delay: | < 20 ms |
| Min. switching power: | 10 mA @ 12 V, 100 mA @ 5 V |
| Max. switching frequency at rated load: | 0.1 Hz |
| Contact type: | 2 CO contact with test button (AgNi 0,15 μm Au) |
| Contact resistance: | ≤ 50 mΩ |
| Rail: | TS 35 |
| Test button: | yes (lockable) |
| Mechanical switch position indicator: | Yes |
| Colour: | black |
| Rated voltage: | 250 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Insulating material group: | C |
| Protection degree: | IP20 |
| Creepage and clearance distance input – output: | ≥ 5.5 mm |
| Certificate no. (cURus) relay: | E312083 |
| Certificate no. (cURus) base: | E355547 |
| Wire connection method: | PUSH IN |
| Stripping length, rated connection: | 10 mm |
| Clamping range, rated connection: | 1.5 mm² |
| Clamping range, min.: | 0.14 mm² |
| Clamping range, max.: | 1.5 mm² |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 16 |
| Wire cross-section, solid, min.: | 0.14 mm² |
| Wire cross-section, solid, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.14 mm² |
| Wire connection cross section, finely stranded, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.14 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.14 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1.5 mm² |
| Blade size: | 0.4 x 2.5 mm |
| ETIM 6.0: | EC001437 |
| ETIM 7.0: | EC001437 |
| eClass 9.0: | 27-37-16-01 |
| eClass 9.1: | 27-37-16-01 |
| eClass 10.0: | 27-37-16-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.117 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
