Weidmueller
2542230000
HDC 06B ALU EMC
Request a Quote

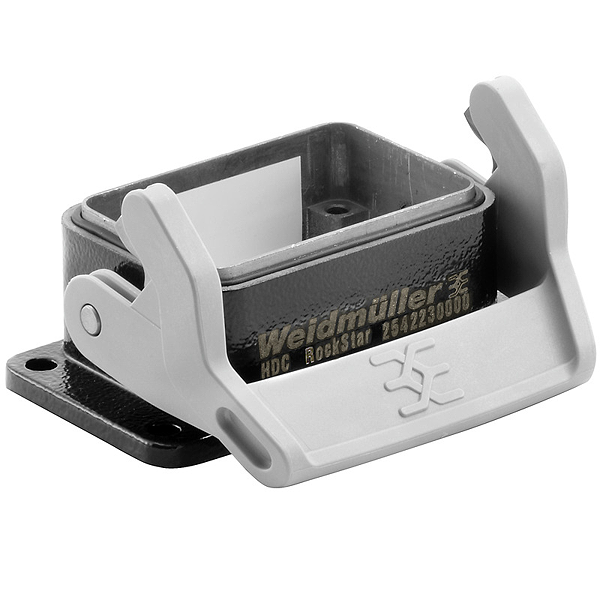

Image copyright: Weidmueller
Weidmueller 2542230000
HDC 06B ALU EMC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | HDC 06B ALU EMC |
| Order No.: | 2542230000 |
| Version: | , Size: 3, Protection degree: IP65, Open base, End-locking clamp, lower side |
| GTIN (EAN): | 4050118648720 |
| Qty.: | 1 pc(s). |
| Width: | 45 |
| Width (inches): | 1.772 inch |
| Height: | 30 mm |
| Height (inches): | 1.181 inch |
| Depth: | 80 mm |
| Depth (inches): | 3.15 inch |
| Net weight: | 88 g |
| Limit temperature: | -40 °C ... 125 °C |
| REACH SVHC: | Lead 7439-92-1 |
| EMC housings: | Yes |
| Housing main material: | diecast aluminium |
| Material of locking element: | PA 66/6, Stainless steel, rust-proof |
| Protection degree: | IP65 |
| Surface finish: | Powder coating |
| UL 94 flammability rating: | V-0 |
| Clamp version: | End-locking clamp |
| Cover: | without cover |
| Design of housing: | Open base |
| Design of locking system: | End-locking clamp, lower side |
| Sealing: | FPM |
| Size: | 3 |
| Suitable for ModuPlug®: | Yes |
| Top part/bottom part/lid: | lower part |
| Type: | Bulkhead (feed-through) |
| ETIM 6.0: | EC000437 |
| ETIM 7.0: | EC000437 |
| eClass 9.0: | 27-44-02-02 |
| eClass 9.1: | 27-44-02-02 |
| eClass 10.0: | 27-44-02-02 |
| Type: | HDC 06B ALU EMC |
| Order No.: | 2542230000 |
| Version: | , Size: 3, Protection degree: IP65, Open base, End-locking clamp, lower side |
| GTIN (EAN): | 4050118648720 |
| Qty.: | 1 pc(s). |
| Width: | 45 |
| Width (inches): | 1.772 inch |
| Height: | 30 mm |
| Height (inches): | 1.181 inch |
| Depth: | 80 mm |
| Depth (inches): | 3.15 inch |
| Net weight: | 88 g |
| Limit temperature: | -40 °C ... 125 °C |
| REACH SVHC: | Lead 7439-92-1 |
| EMC housings: | Yes |
| Housing main material: | diecast aluminium |
| Material of locking element: | PA 66/6, Stainless steel, rust-proof |
| Protection degree: | IP65 |
| Surface finish: | Powder coating |
| UL 94 flammability rating: | V-0 |
| Clamp version: | End-locking clamp |
| Cover: | without cover |
| Design of housing: | Open base |
| Design of locking system: | End-locking clamp, lower side |
| Sealing: | FPM |
| Size: | 3 |
| Suitable for ModuPlug®: | Yes |
| Top part/bottom part/lid: | lower part |
| Type: | Bulkhead (feed-through) |
| ETIM 6.0: | EC000437 |
| ETIM 7.0: | EC000437 |
| eClass 9.0: | 27-44-02-02 |
| eClass 9.1: | 27-44-02-02 |
| eClass 10.0: | 27-44-02-02 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.092 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
