Weidmueller
2494550000
HDC C MHX SM10.0AG
Request a Quote

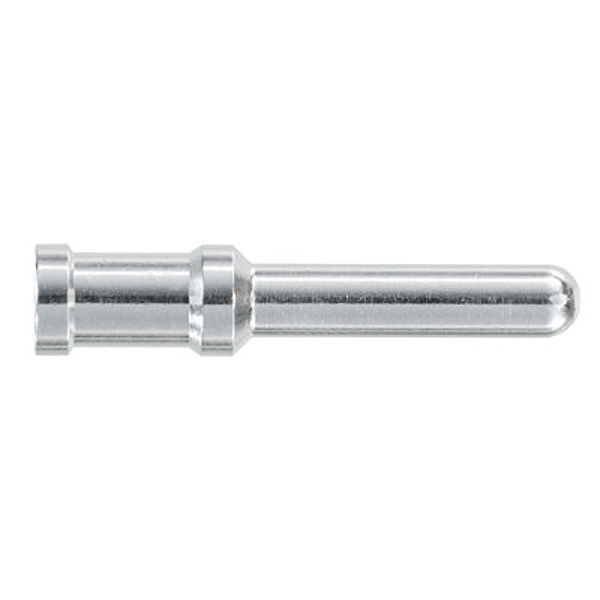

Image copyright: Weidmueller
Weidmueller 2494550000
HDC C MHX SM10.0AG
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | HDC C MHX SM10.0AG |
| Order No.: | 2494550000 |
| Version: | Heavy-duty connectors, Crimp contact, Pin, Conductor cross-section, max.: 10, turned, Copper alloy |
| GTIN (EAN): | 4050118504521 |
| Qty.: | 25 pc(s). |
| Net weight: | 3.194 g |
| REACH SVHC: | Lead 7439-92-1 |
| Contact diameter, male Ø: | 4 mm |
| Cross-section for connected wire: | 10 mm² |
| Material: | Copper alloy |
| Plugging cycles: | ≥ 500 |
| Production methods: | turned |
| Surface finish: | silver |
| Type: | Pin |
| Type of connection: | Crimp connection |
| Volume resistance: | ≤ 1 mΩ |
| Product information: | Stripping length 11 - 12 mm |
| ETIM 6.0: | EC000796 |
| ETIM 7.0: | EC000796 |
| eClass 9.0: | 27-44-02-04 |
| eClass 9.1: | 27-44-02-04 |
| eClass 10.0: | 27-44-02-04 |
| ROHS: | Conform |
| Type: | HDC C MHX SM10.0AG |
| Order No.: | 2494550000 |
| Version: | Heavy-duty connectors, Crimp contact, Pin, Conductor cross-section, max.: 10, turned, Copper alloy |
| GTIN (EAN): | 4050118504521 |
| Qty.: | 25 pc(s). |
| Net weight: | 3.194 g |
| REACH SVHC: | Lead 7439-92-1 |
| Contact diameter, male Ø: | 4 mm |
| Cross-section for connected wire: | 10 mm² |
| Material: | Copper alloy |
| Plugging cycles: | ≥ 500 |
| Production methods: | turned |
| Surface finish: | silver |
| Type: | Pin |
| Type of connection: | Crimp connection |
| Volume resistance: | ≤ 1 mΩ |
| Product information: | Stripping length 11 - 12 mm |
| ETIM 6.0: | EC000796 |
| ETIM 7.0: | EC000796 |
| eClass 9.0: | 27-44-02-04 |
| eClass 9.1: | 27-44-02-04 |
| eClass 10.0: | 27-44-02-04 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.003 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
