Product
Weidmueller
2456110000
ACT20X-SDI-HDO-L-P
Request a Quote

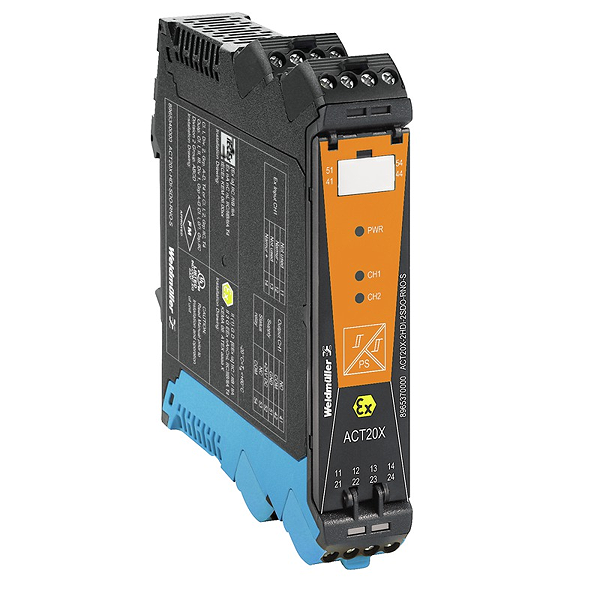

Image copyright: Weidmueller
Weidmueller 2456110000
ACT20X-SDI-HDO-L-P
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | ACT20X-SDI-HDO-L-P |
| Order No.: | 2456110000 |
| Version: | EX signal isolating converter, Safe-input: relay, Ex-output: Opto module, 1-channel, Output current : max. 35 mA |
| GTIN (EAN): | 4050118471502 |
| Qty.: | 1 pc(s). |
| Width: | 22.5 mm |
| Width (inches): | 0.886 inch |
| Height: | 127.1 mm |
| Height (inches): | 5.004 inch |
| Depth: | 113.6 mm |
| Depth (inches): | 4.472 inch |
| Net weight: | 170 g |
| Humidity: | 0...95 % (no condensation) |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -20 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -20 °C |
| Operating temperature: | -20 °C...60 °C |
| Storage temperature: | -20 °C...85 °C |
| MTBF: | 175 Years |
| SIL in compliance with IEC 61508: | 2 |
| REACH SVHC: | Lead 7439-92-1 |
| Number of inputs: | 1 |
| Type: | NPN, PNP transistor, switching signal [input safe-side valve component] |
| Input voltage: | ≤ 28 V DC, Trigger level low: ≤ 2.0 V DC (NPN), ≤ 8.0 V DC (PNP), Trigger level high: ≥ 4.0 V DC (NPN), ≥ 10.0 V DC (PNP) |
| Input resistance, voltage: | 3.5 kΩ |
| Type: | intrinsically safe circuit, digital, output = input, direct or inverse (configurable) |
| Output current: | max. 35 mA |
| Alarm function: | No supply voltage, Device error |
| Type: | Relay, 1 NC (voltage-free) |
| Continuous current: | ≤ 0.5 A AC / 0.3 A DC (safe zone), ≤ 0,5 A AC / 1 A DC (zone 2) |
| Configuration: | With FDT/DTM software |
| Voltage supply: | 19.2…31.2 V DC |
| Type of connection: | PUSH IN |
| Power consumption: | ≤ 1.9 W |
| Step response time: | 10 ms |
| Protection degree: | IP20 |
| Humidity: | 0...95 % (no condensation) |
| EMC standards: | DIN EN 61326, NE 21 |
| Insulation voltage: | 2.6 kV (input / output) |
| Rated voltage: | 300 V |
| Voltage U0: | 28 V DC |
| Current I0: | ≤ 110 mA |
| Power P0: | ≤ 0.77 W |
| Marking: | II (1) G [Ex ia Ga] IIC/IIB/IIA, II (1) D [Ex ia Da] IIIC, I (M1) [Ex ia Ma] I |
| Installation location: | Device installed in safe area, zone 2 |
| Demand mode: | High |
| Demand rate: | 1,000 s |
| Demand response time: | < 10 ms (relay output) |
| Description of the "safe state": | de-energized (relay output) |
| Device type: | B |
| Diagnostic test interval: | 10 s |
| Hardware fault tolerance (HFT): | 0 |
| Mean Time To Repair (MTTR): | 24 h |
| Safe Failure Fraction (SFF): | 91 % |
| Tproof: | 5 Years |
| Total failure rate for dangerous detected failures (λDD): | 61 FIT |
| Total failure rate for dangerous undetected failures (λDU): | 43 FIT |
| Total failure rate for safe detected failures (λSD): | 0 FIT |
| Total failure rate for safe undetected failures (λSU): | 477 FIT |
| Safety category: | SIL 2 |
| Type of connection: | PUSH IN |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 14 |
| Wire cross-section, solid, min.: | 0.2 mm² |
| Wire cross-section, solid, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.2 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.2 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| ETIM 6.0: | EC002653 |
| ETIM 7.0: | EC002653 |
| eClass 9.0: | 27-21-01-20 |
| eClass 9.1: | 27-21-01-20 |
| eClass 10.0: | 27-21-01-20 |
| ROHS: | Conform |
| Type: | ACT20X-SDI-HDO-L-P |
| Order No.: | 2456110000 |
| Version: | EX signal isolating converter, Safe-input: relay, Ex-output: Opto module, 1-channel, Output current : max. 35 mA |
| GTIN (EAN): | 4050118471502 |
| Qty.: | 1 pc(s). |
| Width: | 22.5 mm |
| Width (inches): | 0.886 inch |
| Height: | 127.1 mm |
| Height (inches): | 5.004 inch |
| Depth: | 113.6 mm |
| Depth (inches): | 4.472 inch |
| Net weight: | 170 g |
| Humidity: | 0...95 % (no condensation) |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -20 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -20 °C |
| Operating temperature: | -20 °C...60 °C |
| Storage temperature: | -20 °C...85 °C |
| MTBF: | 175 Years |
| SIL in compliance with IEC 61508: | 2 |
| REACH SVHC: | Lead 7439-92-1 |
| Number of inputs: | 1 |
| Type: | NPN, PNP transistor, switching signal [input safe-side valve component] |
| Input voltage: | ≤ 28 V DC, Trigger level low: ≤ 2.0 V DC (NPN), ≤ 8.0 V DC (PNP), Trigger level high: ≥ 4.0 V DC (NPN), ≥ 10.0 V DC (PNP) |
| Input resistance, voltage: | 3.5 kΩ |
| Type: | intrinsically safe circuit, digital, output = input, direct or inverse (configurable) |
| Output current: | max. 35 mA |
| Alarm function: | No supply voltage, Device error |
| Type: | Relay, 1 NC (voltage-free) |
| Continuous current: | ≤ 0.5 A AC / 0.3 A DC (safe zone), ≤ 0,5 A AC / 1 A DC (zone 2) |
| Configuration: | With FDT/DTM software |
| Voltage supply: | 19.2…31.2 V DC |
| Type of connection: | PUSH IN |
| Power consumption: | ≤ 1.9 W |
| Step response time: | 10 ms |
| Protection degree: | IP20 |
| Humidity: | 0...95 % (no condensation) |
| EMC standards: | DIN EN 61326, NE 21 |
| Insulation voltage: | 2.6 kV (input / output) |
| Rated voltage: | 300 V |
| Voltage U0: | 28 V DC |
| Current I0: | ≤ 110 mA |
| Power P0: | ≤ 0.77 W |
| Marking: | II (1) G [Ex ia Ga] IIC/IIB/IIA, II (1) D [Ex ia Da] IIIC, I (M1) [Ex ia Ma] I |
| Installation location: | Device installed in safe area, zone 2 |
| Demand mode: | High |
| Demand rate: | 1,000 s |
| Demand response time: | < 10 ms (relay output) |
| Description of the "safe state": | de-energized (relay output) |
| Device type: | B |
| Diagnostic test interval: | 10 s |
| Hardware fault tolerance (HFT): | 0 |
| Mean Time To Repair (MTTR): | 24 h |
| Safe Failure Fraction (SFF): | 91 % |
| Tproof: | 5 Years |
| Total failure rate for dangerous detected failures (λDD): | 61 FIT |
| Total failure rate for dangerous undetected failures (λDU): | 43 FIT |
| Total failure rate for safe detected failures (λSD): | 0 FIT |
| Total failure rate for safe undetected failures (λSU): | 477 FIT |
| Safety category: | SIL 2 |
| Type of connection: | PUSH IN |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 14 |
| Wire cross-section, solid, min.: | 0.2 mm² |
| Wire cross-section, solid, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.2 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.2 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| ETIM 6.0: | EC002653 |
| ETIM 7.0: | EC002653 |
| eClass 9.0: | 27-21-01-20 |
| eClass 9.1: | 27-21-01-20 |
| eClass 10.0: | 27-21-01-20 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.184 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
