Product
Weidmueller
1786160000
TOP4GS10/90 6.35 SW
Request a Quote

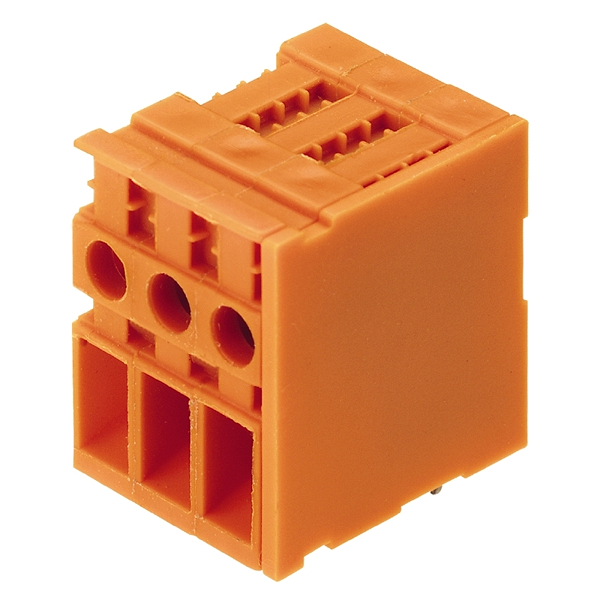

Image copyright: Weidmueller
Weidmueller 1786160000
TOP4GS10/90 6.35 SW
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | TOP4GS10/90 6.35 SW |
| Order No.: | 1786160000 |
| Version: | Printed circuit board terminals, 6.35 mm, Number of poles: 10, 90°, Solder pin length (l): 3.5 mm, tinned, black, TOP connection, Clamping range, max. : 6 mm², Box |
| GTIN (EAN): | 4032248200795 |
| Qty.: | 50 pc(s). |
| Packaging: | Box |
| Width: | 65 mm |
| Width (inches): | 2.559 inch |
| Height: | 29.5 mm |
| Height (inches): | 1.161 inch |
| Height of lowest version: | 26 mm |
| Depth: | 26 mm |
| Depth (inches): | 1.024 inch |
| Net weight: | 77.68 g |
| Product family: | OMNIMATE Signal - series TOP4G |
| Wire connection method: | TOP connection |
| Mounting onto the PCB: | THT solder connection |
| Conductor outlet direction: | 90° |
| Pitch in mm (P): | 6.35 mm |
| Pitch in inches (P): | 0.25 inch |
| Number of poles: | 10 |
| Fitted by customer: | No |
| Number of rows: | 1 |
| Solder pin length (l): | 3.5 mm |
| Solder pin dimensions: | 0.8 x 0.8 mm |
| Solder eyelet hole diameter (D): | 1.3 mm |
| Solder eyelet hole diameter tolerance (D): | + 0,1 mm |
| Number of solder pins per pole: | 2 |
| Screwdriver blade: | 0.6 x 3.5 |
| Screwdriver blade standard: | DIN 5264 |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Clamping screw: | M 3 |
| Stripping length: | 13 mm |
| L1 in mm: | 57.15 mm |
| L1 in inches: | 2.25 inch |
| Volume resistance: | 1.40 mΩ |
| Insulating material: | PA |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulating material group: | I |
| Comparative Tracking Index (CTI): | ≥ 600 |
| UL 94 flammability rating: | V-2 |
| Contact material: | E-Cu |
| Contact surface: | tinned |
| Layer structure of solder connection: | 6...10 µm Sn |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Clamping range, min.: | 0.13 mm² |
| Clamping range, max.: | 6 mm² |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 10 |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 6 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 4 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min.: | 0.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max.: | 4 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min.: | 0.5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max.: | 4 mm² |
| Plug gauge in accordance with EN 60999 a x b; ø: | 2.8 mm x 2.4 mm |
| Type: | fine-wired |
| nominal: | 0.5 mm² |
| nominal: | 14 mm |
| Type: | fine-wired |
| nominal: | 1 mm² |
| nominal: | 15 mm |
| Type: | fine-wired |
| nominal: | 1.5 mm² |
| nominal: | 15 mm |
| nominal: | 12 mm |
| Type: | fine-wired |
| nominal: | 0.75 mm² |
| nominal: | 14 mm |
| Type: | fine-wired |
| nominal: | 2.5 mm² |
| nominal: | 14 mm |
| nominal: | 12 mm |
| Type: | fine-wired |
| nominal: | 4 mm² |
| nominal: | 12 mm |
| nominal: | 14 mm |
| Reference text: | Length of ferrules is to be chosen depending on the product and the rated voltage., The outside diameter of the plastic collar should not be larger than the pitch (P) |
| Max. clamping range: | 6 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 32 A |
| Rated current, min. number of poles (Tu=40°C): | 32 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 320 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 2.5 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 2.5 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 2.5 kV |
| Certificate No. (CSA): | 154685-1501716 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 25 A |
| Rated current (Use group D / CSA): | 10 A |
| Wire cross-section, AWG, min.: | AWG 26 |
| Wire cross-section, AWG, max.: | AWG 10 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 30 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Wire cross-section, AWG, min.: | AWG 26 |
| Wire cross-section, AWG, max.: | AWG 10 |
| Packaging: | Box |
| VPE length: | 78 mm |
| VPE width: | 131 mm |
| VPE height: | 219 mm |
| ETIM 6.0: | EC002643 |
| ETIM 7.0: | EC002643 |
| eClass 9.0: | 27-44-04-01 |
| eClass 9.1: | 27-44-04-01 |
| eClass 10.0: | 27-44-04-01 |
| UNSPSC: | 30-21-18-01 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
| Type: | TOP4GS10/90 6.35 SW |
| Order No.: | 1786160000 |
| Version: | Printed circuit board terminals, 6.35 mm, Number of poles: 10, 90°, Solder pin length (l): 3.5 mm, tinned, black, TOP connection, Clamping range, max. : 6 mm², Box |
| GTIN (EAN): | 4032248200795 |
| Qty.: | 50 pc(s). |
| Packaging: | Box |
| Width: | 65 mm |
| Width (inches): | 2.559 inch |
| Height: | 29.5 mm |
| Height (inches): | 1.161 inch |
| Height of lowest version: | 26 mm |
| Depth: | 26 mm |
| Depth (inches): | 1.024 inch |
| Net weight: | 77.68 g |
| Product family: | OMNIMATE Signal - series TOP4G |
| Wire connection method: | TOP connection |
| Mounting onto the PCB: | THT solder connection |
| Conductor outlet direction: | 90° |
| Pitch in mm (P): | 6.35 mm |
| Pitch in inches (P): | 0.25 inch |
| Number of poles: | 10 |
| Fitted by customer: | No |
| Number of rows: | 1 |
| Solder pin length (l): | 3.5 mm |
| Solder pin dimensions: | 0.8 x 0.8 mm |
| Solder eyelet hole diameter (D): | 1.3 mm |
| Solder eyelet hole diameter tolerance (D): | + 0,1 mm |
| Number of solder pins per pole: | 2 |
| Screwdriver blade: | 0.6 x 3.5 |
| Screwdriver blade standard: | DIN 5264 |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Clamping screw: | M 3 |
| Stripping length: | 13 mm |
| L1 in mm: | 57.15 mm |
| L1 in inches: | 2.25 inch |
| Volume resistance: | 1.40 mΩ |
| Insulating material: | PA |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulating material group: | I |
| Comparative Tracking Index (CTI): | ≥ 600 |
| UL 94 flammability rating: | V-2 |
| Contact material: | E-Cu |
| Contact surface: | tinned |
| Layer structure of solder connection: | 6...10 µm Sn |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Clamping range, min.: | 0.13 mm² |
| Clamping range, max.: | 6 mm² |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 10 |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 6 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 4 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min.: | 0.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max.: | 4 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min.: | 0.5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max.: | 4 mm² |
| Plug gauge in accordance with EN 60999 a x b; ø: | 2.8 mm x 2.4 mm |
| Type: | fine-wired |
| nominal: | 0.5 mm² |
| nominal: | 14 mm |
| Type: | fine-wired |
| nominal: | 1 mm² |
| nominal: | 15 mm |
| Type: | fine-wired |
| nominal: | 1.5 mm² |
| nominal: | 15 mm |
| nominal: | 12 mm |
| Type: | fine-wired |
| nominal: | 0.75 mm² |
| nominal: | 14 mm |
| Type: | fine-wired |
| nominal: | 2.5 mm² |
| nominal: | 14 mm |
| nominal: | 12 mm |
| Type: | fine-wired |
| nominal: | 4 mm² |
| nominal: | 12 mm |
| nominal: | 14 mm |
| Reference text: | Length of ferrules is to be chosen depending on the product and the rated voltage., The outside diameter of the plastic collar should not be larger than the pitch (P) |
| Max. clamping range: | 6 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 32 A |
| Rated current, min. number of poles (Tu=40°C): | 32 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 320 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 2.5 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 2.5 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 2.5 kV |
| Certificate No. (CSA): | 154685-1501716 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 25 A |
| Rated current (Use group D / CSA): | 10 A |
| Wire cross-section, AWG, min.: | AWG 26 |
| Wire cross-section, AWG, max.: | AWG 10 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 30 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Wire cross-section, AWG, min.: | AWG 26 |
| Wire cross-section, AWG, max.: | AWG 10 |
| Packaging: | Box |
| VPE length: | 78 mm |
| VPE width: | 131 mm |
| VPE height: | 219 mm |
| ETIM 6.0: | EC002643 |
| ETIM 7.0: | EC002643 |
| eClass 9.0: | 27-44-04-01 |
| eClass 9.1: | 27-44-04-01 |
| eClass 10.0: | 27-44-04-01 |
| UNSPSC: | 30-21-18-01 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
