Product
Weidmueller
1715030000
LM 3.50/03/135 4.5SN OR BX
Request a Quote

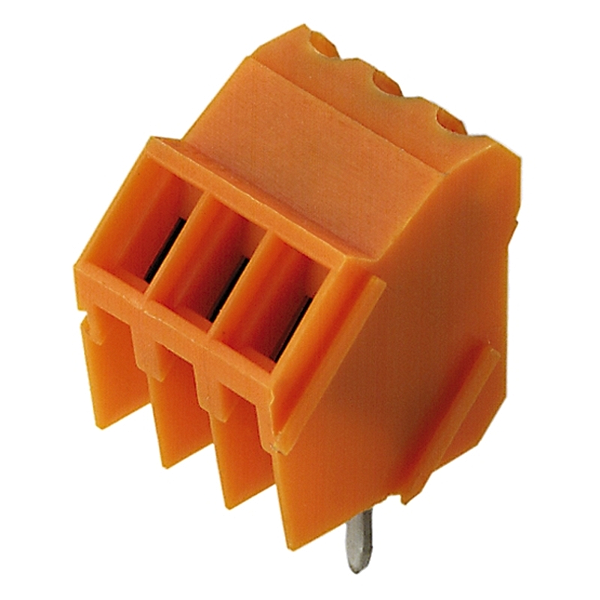

Image copyright: Weidmueller
Weidmueller 1715030000
LM 3.50/03/135 4.5SN OR BX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | LM 3.50/03/135 4.5SN OR BX |
| Order No.: | 1715030000 |
| Version: | Printed circuit board terminals, 3.50 mm, Number of poles: 3, 135°, Solder pin length (l): 4.5 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 2.08 mm², Box |
| GTIN (EAN): | 4008190337360 |
| Qty.: | 100 pc(s). |
| Packaging: | Box |
| Width: | 11.1 |
| Width (inches): | 0.437 inch |
| Height: | 17.2 mm |
| Height (inches): | 0.677 inch |
| Height of lowest version: | 12.7 mm |
| Depth: | 12.7 mm |
| Depth (inches): | 0.5 inch |
| Net weight: | 2.04 g |
| Product family: | OMNIMATE Signal - series LM |
| Wire connection method: | Clamping yoke connection |
| Mounting onto the PCB: | THT solder connection |
| Conductor outlet direction: | 135° |
| Pitch in mm (P): | 3.5 mm |
| Pitch in inches (P): | 0.138 inch |
| Number of poles: | 3 |
| Fitted by customer: | Yes |
| Number of rows: | 1 |
| Max. adjacent poles per row: | 24 |
| Solder pin length (l): | 4.5 mm |
| Solder pin dimensions: | 1.0 x 0.6 mm |
| Solder eyelet hole diameter (D): | 1.3 mm |
| Solder eyelet hole diameter tolerance (D): | + 0,1 mm |
| Number of solder pins per pole: | 1 |
| Screwdriver blade: | 0.4 x 2.5 |
| Screwdriver blade standard: | DIN 5264 |
| Tightening torque, min.: | 0.2 Nm |
| Tightening torque, max.: | 0.25 Nm |
| Clamping screw: | M 2 |
| Stripping length: | 5 mm |
| L1 in mm: | 7 mm |
| L1 in inches: | 0.276 inch |
| Touch-safe protection acc. to DIN VDE 0470: | IP 20 |
| Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch |
| Volume resistance: | 3.60 mΩ |
| Insulating material: | PA |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Insulating material group: | I |
| Comparative Tracking Index (CTI): | ≥ 600 |
| UL 94 flammability rating: | V-2 |
| Contact material: | Copper alloy |
| Contact surface: | tinned |
| Coating: | 1-3 μm Ni, 4-6 μm SN |
| Tinning type: | matt |
| Layer structure of solder connection: | 1.5...3 µm Ni / 4...6 µm Sn matt |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Clamping range, min.: | 0.08 mm² |
| Clamping range, max.: | 2.08 mm² |
| Wire connection cross section AWG, min.: | AWG 28 |
| Wire connection cross section AWG, max.: | AWG 14 |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 1.5 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 1.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min.: | 0.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max.: | 0.75 mm² |
| Plug gauge in accordance with EN 60999 a x b; ø: | 2.4 mm x 1.5 mm |
| Type: | fine-wired |
| nominal: | 0.75 mm² |
| nominal: | 8 mm |
| Reference text: | Length of ferrules is to be chosen depending on the product and the rated voltage., The outside diameter of the plastic collar should not be larger than the pitch (P) |
| Max. clamping range: | 2.08 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 16 A |
| Rated current, max. number of poles (Tu=20°C): | 12 A |
| Rated current, min. number of poles (Tu=40°C): | 14 A |
| Rated current, max. number of poles (Tu=40°C): | 10 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 160 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 160 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 2.5 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 2.5 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 2.5 kV |
| Short-time withstand current resistance: | 3 x 1s with 72 A |
| Certificate No. (CSA): | 154685-1202192 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 10 A |
| Rated current (Use group D / CSA): | 10 A |
| Wire cross-section, AWG, min.: | AWG 28 |
| Wire cross-section, AWG, max.: | AWG 14 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 10 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Wire cross-section, AWG, min.: | AWG 28 |
| Wire cross-section, AWG, max.: | AWG 14 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 58 mm |
| VPE width: | 72 mm |
| VPE height: | 113 mm |
| ETIM 6.0: | EC002643 |
| ETIM 7.0: | EC002643 |
| eClass 9.0: | 27-44-04-01 |
| eClass 9.1: | 27-44-04-01 |
| eClass 10.0: | 27-44-04-01 |
| UNSPSC: | 30-21-18-01 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
| Type: | LM 3.50/03/135 4.5SN OR BX |
| Order No.: | 1715030000 |
| Version: | Printed circuit board terminals, 3.50 mm, Number of poles: 3, 135°, Solder pin length (l): 4.5 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 2.08 mm², Box |
| GTIN (EAN): | 4008190337360 |
| Qty.: | 100 pc(s). |
| Packaging: | Box |
| Width: | 11.1 |
| Width (inches): | 0.437 inch |
| Height: | 17.2 mm |
| Height (inches): | 0.677 inch |
| Height of lowest version: | 12.7 mm |
| Depth: | 12.7 mm |
| Depth (inches): | 0.5 inch |
| Net weight: | 2.04 g |
| Product family: | OMNIMATE Signal - series LM |
| Wire connection method: | Clamping yoke connection |
| Mounting onto the PCB: | THT solder connection |
| Conductor outlet direction: | 135° |
| Pitch in mm (P): | 3.5 mm |
| Pitch in inches (P): | 0.138 inch |
| Number of poles: | 3 |
| Fitted by customer: | Yes |
| Number of rows: | 1 |
| Max. adjacent poles per row: | 24 |
| Solder pin length (l): | 4.5 mm |
| Solder pin dimensions: | 1.0 x 0.6 mm |
| Solder eyelet hole diameter (D): | 1.3 mm |
| Solder eyelet hole diameter tolerance (D): | + 0,1 mm |
| Number of solder pins per pole: | 1 |
| Screwdriver blade: | 0.4 x 2.5 |
| Screwdriver blade standard: | DIN 5264 |
| Tightening torque, min.: | 0.2 Nm |
| Tightening torque, max.: | 0.25 Nm |
| Clamping screw: | M 2 |
| Stripping length: | 5 mm |
| L1 in mm: | 7 mm |
| L1 in inches: | 0.276 inch |
| Touch-safe protection acc. to DIN VDE 0470: | IP 20 |
| Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch |
| Volume resistance: | 3.60 mΩ |
| Insulating material: | PA |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Insulating material group: | I |
| Comparative Tracking Index (CTI): | ≥ 600 |
| UL 94 flammability rating: | V-2 |
| Contact material: | Copper alloy |
| Contact surface: | tinned |
| Coating: | 1-3 μm Ni, 4-6 μm SN |
| Tinning type: | matt |
| Layer structure of solder connection: | 1.5...3 µm Ni / 4...6 µm Sn matt |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Clamping range, min.: | 0.08 mm² |
| Clamping range, max.: | 2.08 mm² |
| Wire connection cross section AWG, min.: | AWG 28 |
| Wire connection cross section AWG, max.: | AWG 14 |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 1.5 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 1.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min.: | 0.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max.: | 0.75 mm² |
| Plug gauge in accordance with EN 60999 a x b; ø: | 2.4 mm x 1.5 mm |
| Type: | fine-wired |
| nominal: | 0.75 mm² |
| nominal: | 8 mm |
| Reference text: | Length of ferrules is to be chosen depending on the product and the rated voltage., The outside diameter of the plastic collar should not be larger than the pitch (P) |
| Max. clamping range: | 2.08 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 16 A |
| Rated current, max. number of poles (Tu=20°C): | 12 A |
| Rated current, min. number of poles (Tu=40°C): | 14 A |
| Rated current, max. number of poles (Tu=40°C): | 10 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 160 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 160 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 2.5 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 2.5 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 2.5 kV |
| Short-time withstand current resistance: | 3 x 1s with 72 A |
| Certificate No. (CSA): | 154685-1202192 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 10 A |
| Rated current (Use group D / CSA): | 10 A |
| Wire cross-section, AWG, min.: | AWG 28 |
| Wire cross-section, AWG, max.: | AWG 14 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 10 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Wire cross-section, AWG, min.: | AWG 28 |
| Wire cross-section, AWG, max.: | AWG 14 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 58 mm |
| VPE width: | 72 mm |
| VPE height: | 113 mm |
| ETIM 6.0: | EC002643 |
| ETIM 7.0: | EC002643 |
| eClass 9.0: | 27-44-04-01 |
| eClass 9.1: | 27-44-04-01 |
| eClass 10.0: | 27-44-04-01 |
| UNSPSC: | 30-21-18-01 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.002 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
