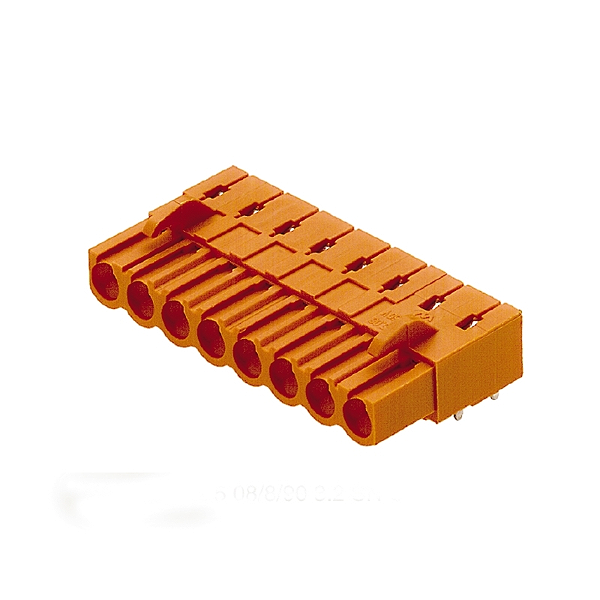

Weidmueller 1645930000
BLL 5.08/03/90 4.5 SN OR BX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | BLL 5.08/03/90 4.5 SN OR BX |
| Order No.: | 1645930000 |
| Version: | PCB plug-in connector, female header, closed side, THT solder connection, 5.08 mm, Number of poles: 3, 90°, Solder pin length (l): 4.5 mm, tinned, orange, Box |
| GTIN (EAN): | 4008190285272 |
| Qty.: | 120 pc(s). |
| Packaging: | Box |
| Net weight: | 3.2 g |
| Product family: | OMNIMATE Signal - series BL/SL 5.08 |
| Type of connection: | Board connection |
| Mounting onto the PCB: | THT solder connection |
| Pitch in mm (P): | 5.08 mm |
| Pitch in inches (P): | 0.2 inch |
| Outgoing elbow: | 90° |
| Number of poles: | 3 |
| Number of solder pins per pole: | 2 |
| Solder pin length (l): | 4.5 mm |
| Solder pin length tolerance: | +0.1 / -0.3 mm |
| Tolerance of solder pin position: | ± 0.1 mm |
| Solder pin dimensions: | 0.4 x 1.00 mm |
| Solder eyelet hole diameter (D): | 1.3 mm |
| Solder eyelet hole diameter tolerance (D): | + 0,1 mm |
| L1 in mm: | 10.16 mm |
| L1 in inches: | 0.4 inch |
| Number of rows: | 1 |
| Pin series quantity: | 1 |
| Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch |
| Volume resistance: | ≤ 5mΩ |
| Can be coded: | Yes |
| Plugging cycles: | 25 |
| Plugging force/pole, min.: | 3 N |
| Plugging force/pole, max.: | 5 N |
| Pulling force / pole, min.: | 3 N |
| Pulling force/pole, max.: | 5 N |
| Insulating material: | PBT GF |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 200 |
| UL 94 flammability rating: | V-0 |
| GWFI: | 960 °C |
| Contact material: | Copper alloy |
| Contact surface: | tinned |
| Layer structure of solder connection: | 4...6 µm Sn hot-dip tinned |
| Layer structure of plug contact: | 4...6 µm Sn hot-dip tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 23 A |
| Rated current, max. number of poles (Tu=20°C): | 16 A |
| Rated current, min. number of poles (Tu=40°C): | 20 A |
| Rated current, max. number of poles (Tu=40°C): | 14 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 400 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 4 kV |
| Short-time withstand current resistance: | 3 x 1s with 120 A |
| Certificate No. (CSA): | 200039-1121690 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 15 A |
| Rated current (Use group D / CSA): | 10 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 15 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 30 mm |
| VPE width: | 135 mm |
| VPE height: | 350 mm |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| UNSPSC: | 30-21-18-10 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
