Product
Weidmueller
1440040000
BLZP 5.08HC/11/270 SN GN BX
Request a Quote

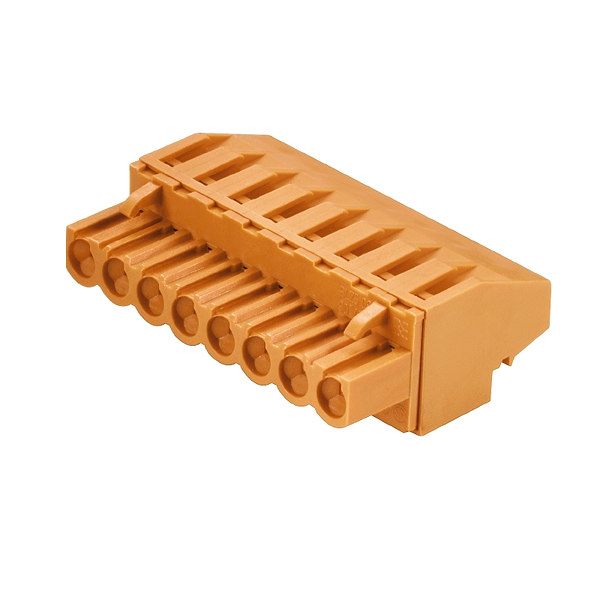

Image copyright: Weidmueller
Weidmueller 1440040000
BLZP 5.08HC/11/270 SN GN BX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | BLZP 5.08HC/11/270 SN GN BX |
| Order No.: | 1440040000 |
| Version: | PCB plug-in connector, female plug, 5.08 mm, Number of poles: 11, 270°, Clamping yoke connection, Clamping range, max. : 4 mm², Box |
| GTIN (EAN): | 4050118246315 |
| Qty.: | 30 pc(s). |
| Packaging: | Box |
| Width: | 55.88 |
| Width (inches): | 2.2 inch |
| Height: | 14.1 mm |
| Height (inches): | 0.555 inch |
| Depth: | 27.2 mm |
| Depth (inches): | 1.071 inch |
| Net weight: | 20.292 g |
| Product family: | OMNIMATE Signal - series BL/SL 5.08 |
| Type of connection: | Field connection |
| Wire connection method: | Clamping yoke connection |
| Pitch in mm (P): | 5.08 mm |
| Pitch in inches (P): | 0.2 inch |
| Conductor outlet direction: | 270° |
| Number of poles: | 11 |
| L1 in mm: | 50.8 mm |
| L1 in inches: | 2 inch |
| Pin series quantity: | 1 |
| Rated cross-section: | 4 mm² |
| Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch |
| Volume resistance: | ≤ 5mΩ |
| Can be coded: | Yes |
| Stripping length: | 7 mm |
| Tightening torque, min.: | 0.4 Nm |
| Tightening torque, max.: | 0.5 Nm |
| Clamping screw: | M 2.5 |
| Screwdriver blade: | 0.6 x 3.5, PH 1, PZ 1 |
| Screwdriver blade standard: | DIN 5264, ISO 8764/2-PH, ISO 8764/2-PZ |
| Plugging cycles: | 25 |
| Plugging force/pole, max.: | 10 N |
| Pulling force/pole, max.: | 9 N |
| Insulating material: | PBT |
| Colour: | Pale green |
| Colour chart (similar): | RAL 6021 |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 200 |
| UL 94 flammability rating: | V-0 |
| GWFI: | 960 °C |
| Contact material: | Copper alloy |
| Contact surface: | tinned |
| Layer structure of plug contact: | 4...8 µm Sn hot-dip tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Clamping range, min.: | 0.13 mm² |
| Clamping range, max.: | 4 mm² |
| Wire connection cross section AWG, min.: | AWG 30 |
| Wire connection cross section AWG, max.: | AWG 12 |
| Solid, min. H05(07) V-U: | 0.2 mm² |
| Solid, max. H05(07) V-U: | 4 mm² |
| Flexible, min. H05(07) V-K: | 0.2 mm² |
| Flexible, max. H05(07) V-K: | 4 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min.: | 0.2 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max.: | 2.5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min.: | 0.2 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max.: | 4 mm² |
| Plug gauge in accordance with EN 60999 a x b; ø: | 2.8 mm x 2.4 mm |
| Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
| Max. clamping range: | 4 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 23 A |
| Rated current, max. number of poles (Tu=20°C): | 18 A |
| Rated current, min. number of poles (Tu=40°C): | 21 A |
| Rated current, max. number of poles (Tu=40°C): | 16 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 400 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 4 kV |
| Short-time withstand current resistance: | 3 x 1s with 120 A |
| Certificate No. (CSA): | 200039-1121690 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group C / CSA): | 50 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 20 A |
| Rated current (Use group D / CSA): | 20 A |
| Wire cross-section, AWG, min.: | AWG 30 |
| Wire cross-section, AWG, max.: | AWG 12 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (cURus): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 20 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Wire cross-section, AWG, min.: | AWG 26 |
| Wire cross-section, AWG, max.: | AWG 12 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 30 mm |
| VPE width: | 135 mm |
| VPE height: | 350 mm |
| Standard: | DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96 |
| Test: | mark of origin, rated voltage, rated cross-section, type of material |
| Evaluation: | available |
| Test: | durability |
| Evaluation: | passed |
| Standard: | DIN EN 60512-13-5 / 11.06, IEC 60512-13-5 / 02.06 |
| Test: | 180° turned with coding elements |
| Evaluation: | passed |
| Test: | visual examination |
| Evaluation: | passed |
| Standard: | DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02 |
| Type of conductor and conductor cross-section: | solid 0.2 mm² |
| Type of conductor and conductor cross-section: | stranded 0.2 mm² |
| Type of conductor and conductor cross-section: | solid 2.5 mm² |
| Type of conductor and conductor cross-section: | stranded 2.5 mm² |
| Type of conductor and conductor cross-section: | AWG 26/1 |
| Type of conductor and conductor cross-section: | AWG 26/19 |
| Evaluation: | passed |
| Standard: | DIN EN 60999-1 section 9.4 / 12.00 |
| Requirement: | 0.2 kg |
| Type of conductor and conductor cross-section: | AWG 26/1 |
| Type of conductor and conductor cross-section: | AWG 26/19 |
| Evaluation: | passed |
| Requirement: | 0.3 kg |
| Type of conductor and conductor cross-section: | solid 0.5 mm² |
| Type of conductor and conductor cross-section: | stranded 0.5 mm² |
| Evaluation: | passed |
| Requirement: | 0.9 kg |
| Type of conductor and conductor cross-section: | AWG 12/1 |
| Type of conductor and conductor cross-section: | AWG 12/19 |
| Evaluation: | passed |
| Standard: | DIN EN 60999-1 section 9.5 / 12.00 |
| Requirement: | ≥10 N |
| Type of conductor and conductor cross-section: | AWG 26/1 |
| Type of conductor and conductor cross-section: | AWG 26/19 |
| Evaluation: | passed |
| Requirement: | ≥20 N |
| Type of conductor and conductor cross-section: | H05V-U0.5 |
| Type of conductor and conductor cross-section: | H05V-K0.5 |
| Evaluation: | passed |
| Requirement: | ≥60 N |
| Type of conductor and conductor cross-section: | H07V-U4.0 |
| Type of conductor and conductor cross-section: | H07V-K4.0 |
| Type of conductor and conductor cross-section: | AWG 12/1 |
| Type of conductor and conductor cross-section: | AWG 12/19 |
| Evaluation: | passed |
| ETIM 6.0: | EC002638 |
| ETIM 7.0: | EC002638 |
| eClass 9.0: | 27-44-03-09 |
| eClass 9.1: | 27-44-03-09 |
| eClass 10.0: | 27-44-03-09 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
