Product
Weidmueller
1201270003
IE-C6FP8LM0003M40M40-M
Request a Quote

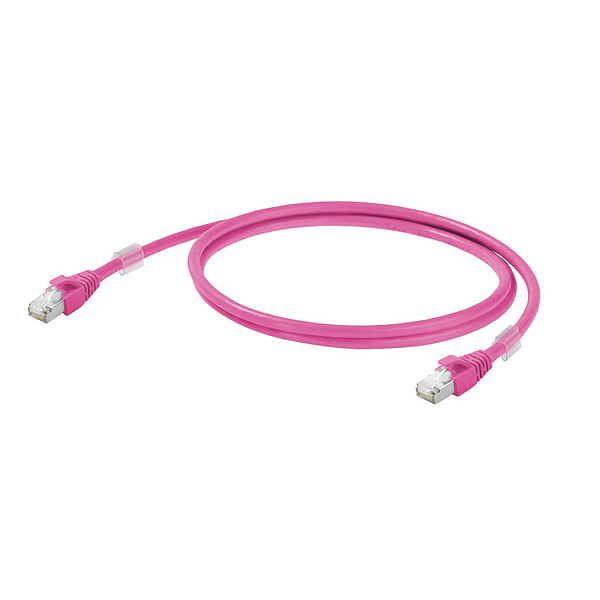

Image copyright: Weidmueller
Weidmueller 1201270003
IE-C6FP8LM0003M40M40-M
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | IE-C6FP8LM0003M40M40-M |
| Order No.: | 1201270003 |
| GTIN (EAN): | 4050118612677 |
| Qty.: | 1 pc(s). |
| Length: | 0.3 m |
| Length (inches): | 0.012 inch |
| Net weight: | 20 g |
| Insulation cross-section: | 1.04 mm |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -20 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -20 °C |
| Operating temperature: | -20 °C...60 °C |
| Storage temperature: | -20 °C...60 °C |
| Installation temperature: | 0 °C...50 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Application-specific communication cable facilities: | ANSI / TIA / EIA-568-B.2-10, ISO / IEC 11801:2002, EN50173-1:2007 |
| Current-carrying capacity at 50 °C: | 1 A |
| PoE / PoE+: | conforming to IEEE 802.3at |
| Connector standard: | IEC 60603-7-51 |
| Copper diameter: | 0.43 mm |
| Strands: | 7 |
| Cross-section: | 4*2*AWG 27/7 - 4*2*0.1 mm² |
| Insulation: | PE |
| Insulation cross-section: | 1.04 mm |
| Number of wires: | 8 |
| Arrangement of wire cores: | Twisted pair |
| Colour sequence or wires - wire pairs: | white - blue, white - orange, white - green, white - brown |
| Shielding: | S/FTP |
| Complete shielding: | Shielding braid made from copper wiring |
| Overlap of shielding braid: | 60 % |
| Material sheath: | LSZH |
| Sheath diameter, min.: | 5.5 mm |
| Sheath diameter, max.: | 5.9 mm |
| Operating voltage: | 50 V DC |
| Operating voltage (UL rating): | 30 V AC / 42.4 V DC |
| Test voltage: wire-wire-shield: | 750 V DC, 1 min |
| Characteristic impedance: | 100 ± 15 Ω at 1–100 MHz |
| Deviation: | 25 ns/100m |
| Resistance differential: | 5 % |
| Capacity at 1 kHz: | 46 nF/km |
| Speed: | 10 GBit/s |
| Coupling resistance at 10 MHz: | 5 mΩ/m |
| Coupling attenuation up to 1000 MHz: | 80 dB |
| Separating class according to EN 50174-2: | d |
| Colour: | Magenta |
| Min. bending radius, once only: | 25 mm |
| Min. bending radius, repetitive: | 50 mm |
| Speed: | 10 GBit/s |
| Resistance to spread of flame: | in accordance with IEC 60332-1 / UL 1581 FT2 |
| Halogen: | halogen-free, according to IEC 60754-2 |
| Contact surface: | Au ≥ 0.8 µm |
| Connector left: | RJ45 IP 20 |
| Connector right: | RJ45 IP 20 |
| ETIM 6.0: | EC002599 |
| ETIM 7.0: | EC002599 |
| eClass 9.0: | 27-06-03-08 |
| eClass 9.1: | 27-06-03-08 |
| eClass 10.0: | 27-06-03-08 |
| ROHS: | Conform |
| Type: | IE-C6FP8LM0003M40M40-M |
| Order No.: | 1201270003 |
| GTIN (EAN): | 4050118612677 |
| Qty.: | 1 pc(s). |
| Length: | 0.3 m |
| Length (inches): | 0.012 inch |
| Net weight: | 20 g |
| Insulation cross-section: | 1.04 mm |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -20 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -20 °C |
| Operating temperature: | -20 °C...60 °C |
| Storage temperature: | -20 °C...60 °C |
| Installation temperature: | 0 °C...50 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Application-specific communication cable facilities: | ANSI / TIA / EIA-568-B.2-10, ISO / IEC 11801:2002, EN50173-1:2007 |
| Current-carrying capacity at 50 °C: | 1 A |
| PoE / PoE+: | conforming to IEEE 802.3at |
| Connector standard: | IEC 60603-7-51 |
| Copper diameter: | 0.43 mm |
| Strands: | 7 |
| Cross-section: | 4*2*AWG 27/7 - 4*2*0.1 mm² |
| Insulation: | PE |
| Insulation cross-section: | 1.04 mm |
| Number of wires: | 8 |
| Arrangement of wire cores: | Twisted pair |
| Colour sequence or wires - wire pairs: | white - blue, white - orange, white - green, white - brown |
| Shielding: | S/FTP |
| Complete shielding: | Shielding braid made from copper wiring |
| Overlap of shielding braid: | 60 % |
| Material sheath: | LSZH |
| Sheath diameter, min.: | 5.5 mm |
| Sheath diameter, max.: | 5.9 mm |
| Operating voltage: | 50 V DC |
| Operating voltage (UL rating): | 30 V AC / 42.4 V DC |
| Test voltage: wire-wire-shield: | 750 V DC, 1 min |
| Characteristic impedance: | 100 ± 15 Ω at 1–100 MHz |
| Deviation: | 25 ns/100m |
| Resistance differential: | 5 % |
| Capacity at 1 kHz: | 46 nF/km |
| Speed: | 10 GBit/s |
| Coupling resistance at 10 MHz: | 5 mΩ/m |
| Coupling attenuation up to 1000 MHz: | 80 dB |
| Separating class according to EN 50174-2: | d |
| Colour: | Magenta |
| Min. bending radius, once only: | 25 mm |
| Min. bending radius, repetitive: | 50 mm |
| Speed: | 10 GBit/s |
| Resistance to spread of flame: | in accordance with IEC 60332-1 / UL 1581 FT2 |
| Halogen: | halogen-free, according to IEC 60754-2 |
| Contact surface: | Au ≥ 0.8 µm |
| Connector left: | RJ45 IP 20 |
| Connector right: | RJ45 IP 20 |
| ETIM 6.0: | EC002599 |
| ETIM 7.0: | EC002599 |
| eClass 9.0: | 27-06-03-08 |
| eClass 9.1: | 27-06-03-08 |
| eClass 10.0: | 27-06-03-08 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.03 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
