1071810000

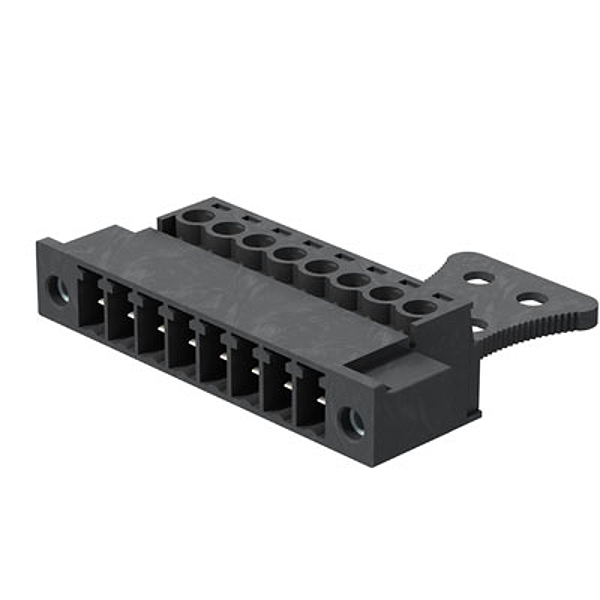

SCZ 3.81/06/180FZE SN BK BX
Type: | SCZ 3.81/06/180FZE SN BK BX |
Order No.: | 1071810000 |
Version: | PCB plug-in connector, male plug, 3.81 mm, Number of poles: 6, 180°, Clamping yoke connection, Clamping range, max. : 1.5 mm², Box |
GTIN (EAN): | 4032248830336 |
Qty.: | 50 pc(s). |
Packaging: | Box |
Height: | 12.5 mm |
Height (inches): | 0.492 inch |
Depth: | 42.1 mm |
Depth (inches): | 1.657 inch |
Net weight: | 6.85 g |
REACH SVHC: | Lead 7439-92-1 |
Product family: | OMNIMATE Signal - series BC/SC 3.81 |
Type of connection: | Field connection |
Wire connection method: | Clamping yoke connection |
Pitch in mm (P): | 3.81 mm |
Pitch in inches (P): | 0.15 inch |
Conductor outlet direction: | 180° |
Number of poles: | 6 |
L1 in mm: | 19.05 mm |
L1 in inches: | 0.75 inch |
Number of rows: | 1 |
Pin series quantity: | 1 |
Rated cross-section: | 1 mm² |
Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch |
Touch-safe protection acc. to DIN VDE 0470: | IP 20 |
Volume resistance: | ≤ 5mΩ |
Can be coded: | Yes |
Stripping length: | 7 mm |
Tightening torque for screw flange, min.: | 0.2 Nm |
Tightening torque for screw flange, max.: | 0.3 Nm |
Tightening torque, min.: | 0.2 Nm |
Tightening torque, max.: | 0.25 Nm |
Clamping screw: | M 2 |
Screwdriver blade: | 0.4 x 2.5 |
Screwdriver blade standard: | DIN 5264 |
Plugging cycles: | 25 |
Plugging force/pole, max.: | 8 N |
Pulling force/pole, max.: | 5 N |
Insulating material: | PA 66 GF 30 |
Colour: | black |
Colour chart (similar): | RAL 9011 |
Insulating material group: | II |
Comparative Tracking Index (CTI): | ≥ 550 |
UL 94 flammability rating: | V-0 |
GWFI: | 960 °C |
Contact material: | Copper alloy |
Contact surface: | tinned |
Layer structure of plug contact: | 4...8 µm Sn |
Storage temperature, min.: | -25 °C |
Storage temperature, max.: | 50 °C |
Max. relative humidity during storage: | 70 % |
Operating temperature, min.: | -50 °C |
Operating temperature, max.: | 120 °C |
Temperature range, installation, min.: | -25 °C |
Temperature range, installation, max.: | 120 °C |
Clamping range, min.: | 0.08 mm² |
Clamping range, max.: | 1.5 mm² |
Wire connection cross section AWG, min.: | AWG 28 |
Wire connection cross section AWG, max.: | AWG 16 |
Solid, min. H05(07) V-U: | 0.2 mm² |
Solid, max. H05(07) V-U: | 1.5 mm² |
Flexible, min. H05(07) V-K: | 0.2 mm² |
Flexible, max. H05(07) V-K: | 1.5 mm² |
w. plastic collar ferrule, DIN 46228 pt 4, min.: | 0.2 mm² |
w. plastic collar ferrule, DIN 46228 pt 4, max.: | 1.5 mm² |
w. wire end ferrule, DIN 46228 pt 1, min.: | 0.2 mm² |
w. wire end ferrule, DIN 46228 pt 1, max.: | 1.5 mm² |
Plug gauge in accordance with EN 60999 a x b; ø: | 2.4 mm x 1.5 mm ; 2.4 mm |
Type: | fine-wired |
nominal: | 0.5 mm² |
nominal: | 6 mm |
Type: | fine-wired |
nominal: | 0.75 mm² |
nominal: | 6 mm |
Type: | fine-wired |
nominal: | 1 mm² |
nominal: | 6 mm |
Type: | fine-wired |
nominal: | 1.5 mm² |
nominal: | 7 mm |
Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
Max. clamping range: | 1.5 mm² |
tested acc. to standard: | IEC 60664-1, IEC 61984 |
Rated current, min. number of poles (Tu=20°C): | 17.5 A |
Rated current, max. number of poles (Tu=20°C): | 17.1 A |
Rated current, min. number of poles (Tu=40°C): | 17.5 A |
Rated current, max. number of poles (Tu=40°C): | 15.2 A |
Rated voltage for surge voltage class / pollution degree II/2: | 320 V |
Rated voltage for surge voltage class / pollution degree III/2: | 160 V |
Rated voltage for surge voltage class / pollution degree III/3: | 160 V |
Rated impulse voltage for surge voltage class/ pollution degree II/2: | 2.5 kV |
Rated impulse voltage for surge voltage class/ pollution degree III/2: | 2.5 kV |
Rated impulse voltage for surge voltage class/ contamination degree III/3: | 2.5 kV |
Short-time withstand current resistance: | 3 x 1s with 76 A |
Rated voltage (Use group B / CSA): | 300 V |
Rated voltage (Use group C / CSA): | 50 V |
Rated current (Use group B / CSA): | 11 A |
Rated current (Use group C / CSA): | 11 A |
Wire cross-section, AWG, min.: | AWG 28 |
Wire cross-section, AWG, max.: | AWG 16 |
Certificate No. (cURus): | E60693 |
Rated voltage (Use group B / UL 1059): | 300 V |
Rated voltage (Use group D / UL 1059): | 300 V |
Rated current (Use group B / UL 1059): | 10 A |
Rated current (Use group D / UL 1059): | 10 A |
Wire cross-section, AWG, min.: | AWG 28 |
Wire cross-section, AWG, max.: | AWG 16 |
Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
Packaging: | Box |
VPE length: | 45 mm |
VPE width: | 130 mm |
VPE height: | 230 mm |
Standard: | DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96 |
Test: | mark of origin, type identification, rated voltage, rated cross-section, pitch, type of material, approval marking UL, approval marking CSA |
Evaluation: | available |
Test: | durability |
Evaluation: | passed |
Standard: | DIN EN 61984 section 6.3 and 6.9.1 / 09.02, DIN EN 60512-13-5 / 11.06 |
Test: | 180° turned without coding elements |
Evaluation: | passed |
Test: | visual examination |
Evaluation: | passed |
Standard: | DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02 |
Type of conductor and conductor cross-section: | solid 0.08 mm² |
Type of conductor and conductor cross-section: | stranded 0.08 mm² |
Type of conductor and conductor cross-section: | solid 1.5 mm² |
Type of conductor and conductor cross-section: | stranded 1.5 mm² |
Type of conductor and conductor cross-section: | AWG 28/1 |
Type of conductor and conductor cross-section: | AWG 28/19 |
Type of conductor and conductor cross-section: | AWG 16/1 |
Type of conductor and conductor cross-section: | AWG 16/19 |
Evaluation: | passed |
Standard: | DIN EN 60999-1 section 9.4 / 12.00 |
Requirement: | 0.2 kg |
Type of conductor and conductor cross-section: | stranded 0.25 mm² |
Type of conductor and conductor cross-section: | AWG 28/1 |
Type of conductor and conductor cross-section: | AWG 28/19 |
Evaluation: | passed |
Requirement: | 0.3 kg |
Type of conductor and conductor cross-section: | solid 0.5 mm² |
Evaluation: | passed |
Requirement: | 0.4 kg |
Type of conductor and conductor cross-section: | solid 1.5 mm² |
Type of conductor and conductor cross-section: | stranded 1.5 mm² |
Type of conductor and conductor cross-section: | AWG 16/1 |
Type of conductor and conductor cross-section: | AWG 16/19 |
Evaluation: | passed |
Standard: | DIN EN 60999-1 section 9.5 / 12.00 |
Requirement: | ≥10 N |
Type of conductor and conductor cross-section: | stranded 0.25 mm² |
Type of conductor and conductor cross-section: | AWG 28/1 |
Type of conductor and conductor cross-section: | AWG 28/19 |
Evaluation: | passed |
Requirement: | ≥20 N |
Type of conductor and conductor cross-section: | H05V-U0.5 |
Evaluation: | passed |
Requirement: | ≥40 N |
Type of conductor and conductor cross-section: | H07V-U1.5 |
Type of conductor and conductor cross-section: | H07V-K1.5 |
Type of conductor and conductor cross-section: | AWG 16/1 |
Type of conductor and conductor cross-section: | AWG 16/19 |
Evaluation: | passed |
ETIM 6.0: | EC002638 |
ETIM 7.0: | EC002638 |
eClass 9.0: | 27-44-03-09 |
eClass 9.1: | 27-44-03-09 |
eClass 10.0: | 27-44-03-09 |
IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
ROHS: | Conform |
