1047870000
BLC 5.08/17/180R OR BX
Request a Quote
Image copyright: Weidmueller

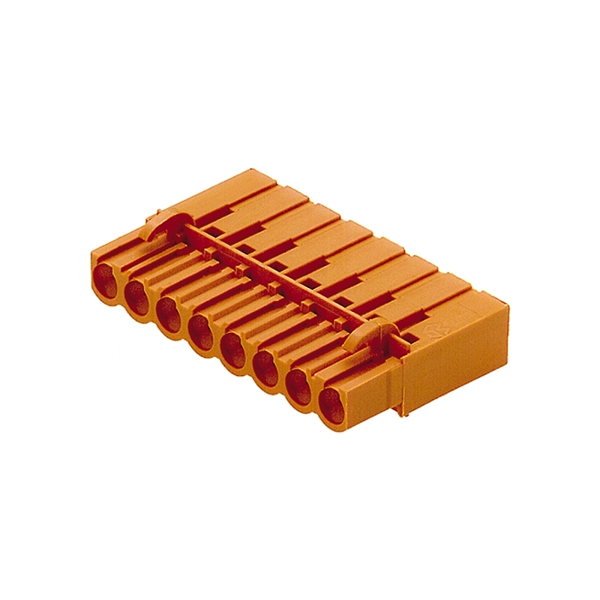

Weidmueller 1047870000
BLC 5.08/17/180R OR BX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | BLC 5.08/17/180R OR BX |
| Order No.: | 1047870000 |
| Version: | PCB plug-in connector, female plug, 5.08 mm, Number of poles: 17, 180°, Crimp connection, Clamping range, max. : 2.5 mm², Box |
| GTIN (EAN): | 4032248784417 |
| Qty.: | 20 pc(s). |
| Packaging: | Box |
| Width: | 86.36 |
| Width (inches): | 3.4 inch |
| Height: | 10.1 mm |
| Height (inches): | 0.398 inch |
| Depth: | 24.5 mm |
| Depth (inches): | 0.965 inch |
| Net weight: | 11.25 g |
| Product family: | OMNIMATE Signal - series BL/SL 5.08 |
| Type of connection: | Field connection |
| Wire connection method: | Crimp connection |
| Pitch in mm (P): | 5.08 mm |
| Pitch in inches (P): | 0.2 inch |
| Conductor outlet direction: | 180° |
| Number of poles: | 17 |
| L1 in mm: | 81.28 mm |
| L1 in inches: | 0.2 inch |
| Number of rows: | 1 |
| Pin series quantity: | 1 |
| Rated cross-section: | 2.5 mm² |
| Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch |
| Volume resistance: | ≤ 5mΩ |
| Can be coded: | Yes |
| Stripping length: | 5 mm |
| Plugging cycles: | 25 |
| Plugging force/pole, max.: | 8.5 N |
| Pulling force/pole, max.: | 6.5 N |
| Insulating material: | PBT GF |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 200 |
| UL 94 flammability rating: | V-0 |
| Contact material: | Copper alloy |
| Layer structure of plug contact: | 4...8 µm Sn hot-dip tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Clamping range, min.: | 0.22 mm² |
| Clamping range, max.: | 2.5 mm² |
| Wire connection cross section AWG, min.: | AWG 24 |
| Wire connection cross section AWG, max.: | AWG 14 |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 2.5 mm² |
| Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
| Max. clamping range: | 2.5 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 21 A |
| Rated current, max. number of poles (Tu=20°C): | 14.5 A |
| Rated current, min. number of poles (Tu=40°C): | 18 A |
| Rated current, max. number of poles (Tu=40°C): | 12.5 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 400 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 4 kV |
| Short-time withstand current resistance: | 3 x 1s with 120 A |
| Certificate No. (CSA): | 12400-374 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 10 A |
| Rated current (Use group D / CSA): | 10 A |
| Wire cross-section, AWG, min.: | AWG 26 |
| Wire cross-section, AWG, max.: | AWG 14 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 10 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Wire cross-section, AWG, min.: | AWG 26 |
| Wire cross-section, AWG, max.: | AWG 14 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 30 mm |
| VPE width: | 60 mm |
| VPE height: | 180 mm |
| Standard: | draft DIN VDE 0627 section 6.2.2 / 09.91, DIN IEC 512 part 7 section 5 / 05.94 |
| Test: | durability |
| Evaluation: | passed |
| ETIM 6.0: | EC002638 |
| ETIM 7.0: | EC002638 |
| eClass 9.0: | 27-44-03-09 |
| eClass 9.1: | 27-44-03-09 |
| eClass 10.0: | 27-44-03-09 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
| Type: | BLC 5.08/17/180R OR BX |
| Order No.: | 1047870000 |
| Version: | PCB plug-in connector, female plug, 5.08 mm, Number of poles: 17, 180°, Crimp connection, Clamping range, max. : 2.5 mm², Box |
| GTIN (EAN): | 4032248784417 |
| Qty.: | 20 pc(s). |
| Packaging: | Box |
| Width: | 86.36 |
| Width (inches): | 3.4 inch |
| Height: | 10.1 mm |
| Height (inches): | 0.398 inch |
| Depth: | 24.5 mm |
| Depth (inches): | 0.965 inch |
| Net weight: | 11.25 g |
| Product family: | OMNIMATE Signal - series BL/SL 5.08 |
| Type of connection: | Field connection |
| Wire connection method: | Crimp connection |
| Pitch in mm (P): | 5.08 mm |
| Pitch in inches (P): | 0.2 inch |
| Conductor outlet direction: | 180° |
| Number of poles: | 17 |
| L1 in mm: | 81.28 mm |
| L1 in inches: | 0.2 inch |
| Number of rows: | 1 |
| Pin series quantity: | 1 |
| Rated cross-section: | 2.5 mm² |
| Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch |
| Volume resistance: | ≤ 5mΩ |
| Can be coded: | Yes |
| Stripping length: | 5 mm |
| Plugging cycles: | 25 |
| Plugging force/pole, max.: | 8.5 N |
| Pulling force/pole, max.: | 6.5 N |
| Insulating material: | PBT GF |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 200 |
| UL 94 flammability rating: | V-0 |
| Contact material: | Copper alloy |
| Layer structure of plug contact: | 4...8 µm Sn hot-dip tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Clamping range, min.: | 0.22 mm² |
| Clamping range, max.: | 2.5 mm² |
| Wire connection cross section AWG, min.: | AWG 24 |
| Wire connection cross section AWG, max.: | AWG 14 |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 2.5 mm² |
| Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
| Max. clamping range: | 2.5 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 21 A |
| Rated current, max. number of poles (Tu=20°C): | 14.5 A |
| Rated current, min. number of poles (Tu=40°C): | 18 A |
| Rated current, max. number of poles (Tu=40°C): | 12.5 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 400 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 4 kV |
| Short-time withstand current resistance: | 3 x 1s with 120 A |
| Certificate No. (CSA): | 12400-374 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 10 A |
| Rated current (Use group D / CSA): | 10 A |
| Wire cross-section, AWG, min.: | AWG 26 |
| Wire cross-section, AWG, max.: | AWG 14 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 10 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Wire cross-section, AWG, min.: | AWG 26 |
| Wire cross-section, AWG, max.: | AWG 14 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 30 mm |
| VPE width: | 60 mm |
| VPE height: | 180 mm |
| Standard: | draft DIN VDE 0627 section 6.2.2 / 09.91, DIN IEC 512 part 7 section 5 / 05.94 |
| Test: | durability |
| Evaluation: | passed |
| ETIM 6.0: | EC002638 |
| ETIM 7.0: | EC002638 |
| eClass 9.0: | 27-44-03-09 |
| eClass 9.1: | 27-44-03-09 |
| eClass 10.0: | 27-44-03-09 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
