1005410000

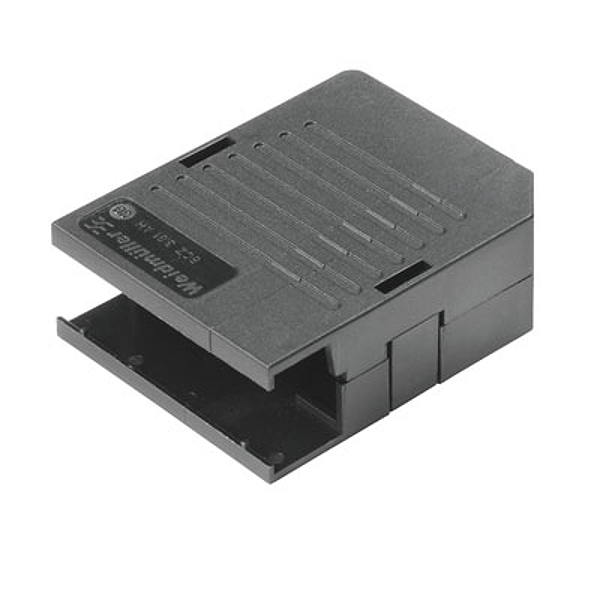

BCZ 3.81 AH16 BK BX
Type: | BCZ 3.81 AH16 BK BX |
Order No.: | 1005410000 |
Version: | PCB plug-in connector, Accessories, Hood, black, Number of poles: 16 |
GTIN (EAN): | 4032248752638 |
Qty.: | 10 pc(s). |
Product data: | |
Packaging: | Box |
Net weight: | 10.5 g |
Colour: | black |
Colour chart (similar): | RAL 9011 |
GWFI: | 960 °C |
Operating temperature, min.: | -50 °C |
Operating temperature, max.: | 100 °C |
Temperature range, installation, min.: | -25 °C |
Temperature range, installation, max.: | 100 °C |
tested acc. to standard: | IEC 60664-1, IEC 61984 |
Packaging: | Box |
VPE length: | 35 mm |
VPE width: | 90 mm |
VPE height: | 180 mm |
ETIM 6.0: | EC002943 |
ETIM 7.0: | EC002943 |
eClass 9.0: | 27-44-04-92 |
eClass 9.1: | 27-44-04-92 |
eClass 10.0: | 27-44-04-92 |
IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
ROHS: | Conform |
Type: | BCZ 3.81 AH16 BK BX |
Order No.: | 1005410000 |
Version: | PCB plug-in connector, Accessories, Hood, black, Number of poles: 16 |
GTIN (EAN): | 4032248752638 |
Qty.: | 10 pc(s). |
Product data: | |
Packaging: | Box |
Net weight: | 10.5 g |
Colour: | black |
Colour chart (similar): | RAL 9011 |
GWFI: | 960 °C |
Operating temperature, min.: | -50 °C |
Operating temperature, max.: | 100 °C |
Temperature range, installation, min.: | -25 °C |
Temperature range, installation, max.: | 100 °C |
tested acc. to standard: | IEC 60664-1, IEC 61984 |
Packaging: | Box |
VPE length: | 35 mm |
VPE width: | 90 mm |
VPE height: | 180 mm |
ETIM 6.0: | EC002943 |
ETIM 7.0: | EC002943 |
eClass 9.0: | 27-44-04-92 |
eClass 9.1: | 27-44-04-92 |
eClass 10.0: | 27-44-04-92 |
IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
ROHS: | Conform |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.011 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
