1001260000

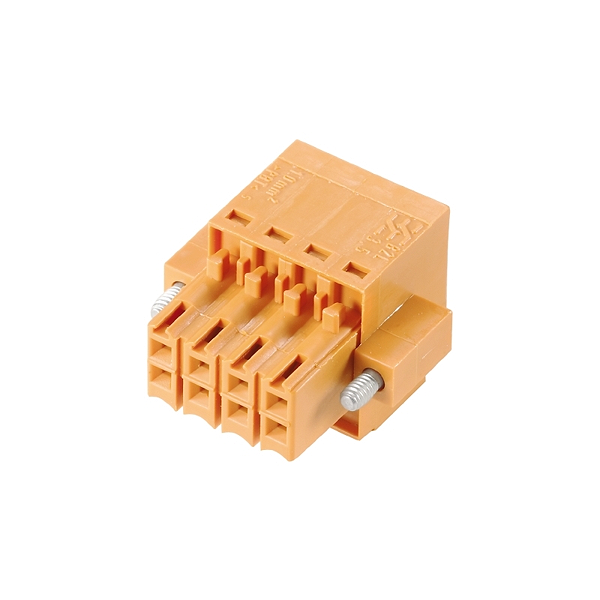

B2L 3.50/04/180F SN OR BX
Type: | B2L 3.50/04/180F SN OR BX |
Order No.: | 1001260000 |
Version: | PCB plug-in connector, female plug, 3.50 mm, Number of poles: 4, 180°, Tension-clamp connection, Clamping range, max. : 1 mm², Box |
GTIN (EAN): | 4032248692989 |
Qty.: | 132 pc(s). |
Packaging: | Box |
Width: | 13.8 |
Width (inches): | 0.543 inch |
Height: | 15.7 mm |
Height (inches): | 0.618 inch |
Depth: | 20.6 mm |
Depth (inches): | 0.811 inch |
Net weight: | 2.63 g |
Product family: | OMNIMATE Signal - series B2L/S2L 3.50 - 2-row |
Type of connection: | Field connection |
Wire connection method: | Tension-clamp connection |
Pitch in mm (P): | 3.5 mm |
Pitch in inches (P): | 0.138 inch |
Conductor outlet direction: | 180° |
Number of poles: | 4 |
L1 in mm: | 3.5 mm |
L1 in inches: | 0.138 inch |
Number of rows: | 1 |
Pin series quantity: | 2 |
Rated cross-section: | 1 mm² |
Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch |
Touch-safe protection acc. to DIN VDE 0470: | IP 20 |
Can be coded: | Yes |
Stripping length: | 7 mm |
Tightening torque for screw flange, min.: | 0.2 Nm |
Tightening torque for screw flange, max.: | 0.25 Nm |
Screwdriver blade: | 0.4 x 2.5 |
Screwdriver blade standard: | DIN 5264 |
Plugging cycles: | 25 |
Plugging force/pole, max.: | 5 N |
Pulling force/pole, max.: | 4 N |
Insulating material: | PBT |
Colour: | orange |
Colour chart (similar): | RAL 2000 |
UL 94 flammability rating: | V-0 |
GWFI: | 960 °C |
Contact material: | Copper alloy |
Contact surface: | tinned |
Storage temperature, min.: | -25 °C |
Storage temperature, max.: | 50 °C |
Max. relative humidity during storage: | 70 % |
Operating temperature, min.: | -50 °C |
Operating temperature, max.: | 100 °C |
Temperature range, installation, min.: | -30 °C |
Temperature range, installation, max.: | 100 °C |
Clamping range, min.: | 0.08 mm² |
Clamping range, max.: | 1 mm² |
Wire connection cross section AWG, min.: | AWG 28 |
Wire connection cross section AWG, max.: | AWG 18 |
Solid, min. H05(07) V-U: | 0.2 mm² |
Solid, max. H05(07) V-U: | 1 mm² |
Flexible, min. H05(07) V-K: | 0.2 mm² |
Flexible, max. H05(07) V-K: | 1 mm² |
w. plastic collar ferrule, DIN 46228 pt 4, min.: | 0.14 mm² |
w. plastic collar ferrule, DIN 46228 pt 4, max.: | 0.34 mm² |
w. wire end ferrule, DIN 46228 pt 1, min.: | 0.14 mm² |
w. wire end ferrule, DIN 46228 pt 1, max.: | 0.34 mm² |
Type: | fine-wired |
nominal: | 0.14 mm² |
nominal: | 10 mm |
Type: | fine-wired |
nominal: | 0.25 mm² |
nominal: | 10 mm |
Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
Max. clamping range: | 1 mm² |
tested acc. to standard: | IEC 60664-1, IEC 61984 |
Rated current, min. number of poles (Tu=20°C): | 10.3 A |
Rated current, max. number of poles (Tu=20°C): | 8.7 A |
Rated current, min. number of poles (Tu=40°C): | 8.9 A |
Rated current, max. number of poles (Tu=40°C): | 7.4 A |
Rated voltage for surge voltage class / pollution degree II/2: | 250 V |
Rated voltage for surge voltage class / pollution degree III/2: | 160 V |
Rated voltage for surge voltage class / pollution degree III/3: | 80 V |
Rated impulse voltage for surge voltage class/ pollution degree II/2: | 2.5 kV |
Rated impulse voltage for surge voltage class/ pollution degree III/2: | 2.5 kV |
Rated impulse voltage for surge voltage class/ contamination degree III/3: | 2.5 kV |
Short-time withstand current resistance: | 3 x 1s with 77 A |
Certificate No. (CSA): | 200039-1488444 |
Rated voltage (Use group B / CSA): | 300 V |
Rated current (Use group B / CSA): | 5 A |
Wire cross-section, AWG, min.: | AWG 28 |
Wire cross-section, AWG, max.: | AWG 18 |
Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
Certificate No. (UR): | E60693 |
Rated voltage (Use group B / UL 1059): | 300 V |
Rated voltage (Use group C / UL 1059): | 50 V |
Rated current (Use group B / UL 1059): | 10 A |
Rated current (Use group C / UL 1059): | 10 A |
Wire cross-section, AWG, min.: | AWG 28 |
Wire cross-section, AWG, max.: | AWG 16 |
Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
Packaging: | Box |
VPE length: | 50 mm |
VPE width: | 75 mm |
VPE height: | 115 mm |
ETIM 6.0: | EC002638 |
ETIM 7.0: | EC002638 |
eClass 9.0: | 27-44-03-09 |
eClass 9.1: | 27-44-03-09 |
eClass 10.0: | 27-44-03-09 |
UNSPSC: | 30-21-18-01 |
IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
ROHS: | Conform |
