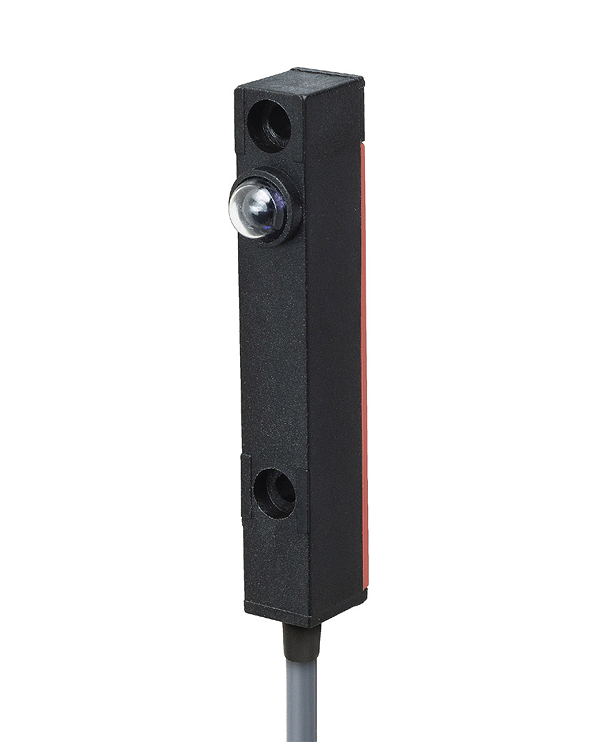

Telco 7737
SMT 6000 SG 5
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Operation Mode: | Thru Beam |
| Function: | Receiver |
| Supply Voltage: | 10 - 32 V dc |
| Sensing Range: | 6 m |
| Output: | NPN |
| Output Status: | N.C. |
| Housing: | 9,5 x 11,5 |
| Housing Material: | Plastic |
| Connection: | 5 m cable |
| Operation Mode: | Thru Beam |
| Function: | Receiver |
| Supply Voltage: | 10 - 32 V dc |
| Sensing Range: | 6 m |
| Output: | NPN |
| Output Status: | N.O. |
| Housing: | 9,5 x 11,5 |
| Housing Material: | Plastic |
| Connection: | 5 m cable |
| Operation Mode: | Thru Beam |
| Function: | Receiver |
| Supply Voltage: | 10 - 32 V dc |
| Sensing Range: | 6 m |
| Output: | PNP |
| Output Status: | N.C. |
| Housing: | 9,5 x 11,5 |
| Housing Material: | Plastic |
| Connection: | 5 m cable |
| Operation Mode: | Thru Beam |
| Function: | Receiver |
| Supply Voltage: | 10 - 32 V dc |
| Sensing Range: | 6 m |
| Output: | PNP |
| Output Status: | N.O. |
| Housing: | 9,5 x 11,5 |
| Housing Material: | Plastic |
| Connection: | 5 m cable |
| Operation Mode: | Thru Beam |
| Function: | Receiver |
| Supply Voltage: | 10 - 32 V dc |
| Sensing Range: | 2 m |
| Output: | NPN |
| Output Status: | N.C. |
| Housing: | 9,5 x 11,5 |
| Housing Material: | Plastic |
| Connection: | 5 m cable |
| Operation Mode: | Thru Beam |
| Function: | Receiver |
| Supply Voltage: | 10 - 32 V dc |
| Sensing Range: | 2 m |
| Output: | NPN |
| Output Status: | N.O. |
| Housing: | 9,5 x 11,5 |
| Housing Material: | Plastic |
| Connection: | 5 m cable |
| Operation Mode: | Thru Beam |
| Function: | Receiver |
| Supply Voltage: | 10 - 32 V dc |
| Sensing Range: | 2 m |
| Output: | PNP |
| Output Status: | N.C. |
| Housing: | 9,5 x 11,5 |
| Housing Material: | Plastic |
| Connection: | 5 m cable |
| Operation Mode: | Thru Beam |
| Function: | Receiver |
| Supply Voltage: | 10 - 32 V dc |
| Sensing Range: | 2 m |
| Output: | PNP |
| Output Status: | N.O. |
| Housing: | 9,5 x 11,5 |
| Housing Material: | Plastic |
| Connection: | 5 m cable |
| Operation Mode: | Thru Beam |
| Function: | Transmitter |
| Supply Voltage: | 10 - 32 V dc |
| Light Source: | Infrared (880 nm) |
| Control Feature: | Adjustable range and test input |
| Sensing Range: | 6 m |
| Housing: | 9,5 x 11,5 |
| Housing Material: | Plastic |
| Connection: | 5 m cable |
| Supply Voltage: | 10 - 32 V dc |
| Voltage Ripple: | 15 % |
| Reverse Polarity Protected: | Yes |
| Current Consumption: | Max. 320 mW |
| Test Input: | Yes |
| Control Input: | Adjustable range |
| Light Source: | Infrared (880 nm) |
| Emission Angle: | +/- 10° |
| Housing Material, Front Lens: | Polycarbonate |
| Housing Material, Sensor Housing: | Polyester |
| Cable: | 3 x 0,14 mm² |
| Cable Sleeve: | PVC Ø 4,0 mm |
| Vibration: | 10 - 55 Hz, 0.5 mm |
| Shock: | 30 g |
| Operation Temperature: | -20 to +60 °C |
| Storage Temperature: | -40 to +80 °C |
| Sealing Class: | IP 67 |
