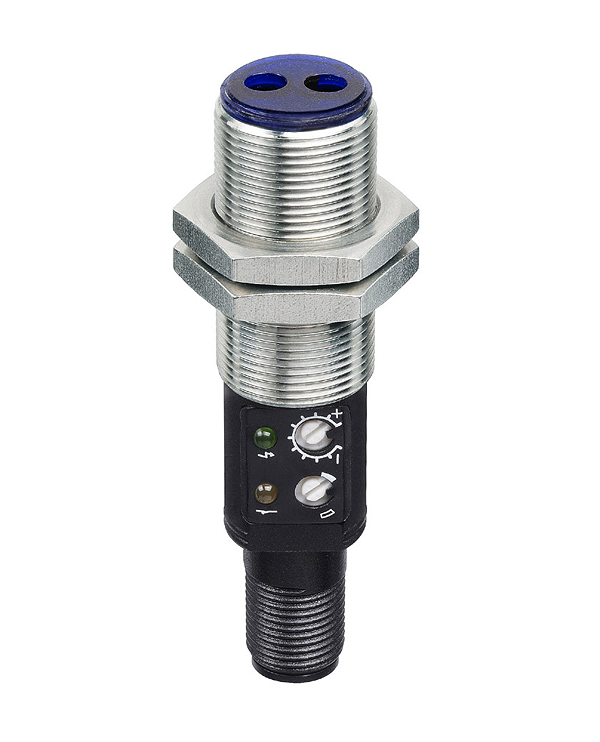

Image copyright: Telco
Telco 6705
SMPF 8500 MGJ
Fibre Sensor. Photoelectric Sensors
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Operation Mode: | Fibre Sensor |
| Function: | Both |
| Supply Voltage: | 10 - 30 V dc |
| Light Source: | Infrared (880 nm) |
| Control Feature: | Sensitivity pot. and light/dark switch |
| Sensing Range: | Dependent of fibre optic |
| Output: | PNP |
| Output Status: | N.C./N.O. |
| Housing: | M18 x 1 |
| Housing Material: | Stainless Steel |
| Connection: | 4 pin, M12 plug |
| Supply Voltage: | 10 - 30 V dc |
| Voltage Ripple: | 15 % |
| Reverse Polarity Protected: | Yes |
| Short Circuit Protected: | Yes |
| Current Consumption: | 14 mA |
| Max. Output Load: | 120 mA / 30 V dc |
| Max. Residual Voltage: | 1,5 V |
| Max. Operation Frequency: | 250 Hz |
| Response Time ton / toff: | 2 ms / 2 ms |
| Power On Indicator: | Green LED |
| Output Indicator: | Yellow LED |
| Hysteresis: | Approx. 5 - 15 % |
| Opening Angle: | +/- 4° |
| Housing Material, Front Lens: | Polycarbonate |
| Housing Material, Sensor Housing: | Stainless Steel (AISI 316 / 1.4401) |
| Cable: | 3 x 0,14 mm² |
| Cable Sleeve: | PVC Ø 4,0 mm |
| Vibration: | 10 - 55 Hz, 0,5 mm |
| Shock: | 30 g |
| Operation Temperature: | -20 to +60 °C |
| Storage Temperature: | -40 to +80 °C |
| Sealing Class: | IP 67 |
| Light Immunity 15˚: | > 40 000 lux |
