6626

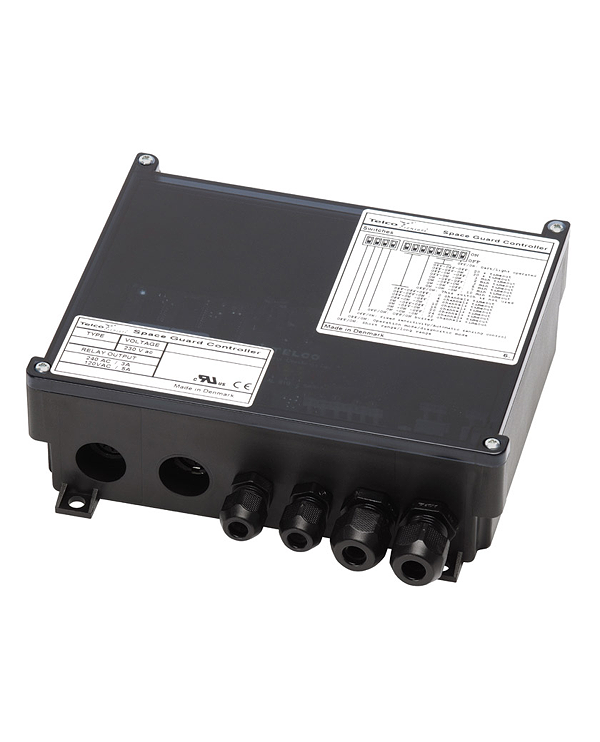

SGC 11 A 300
Remote Light Curtains. Light Curtains
Function: | Controller |
Supply Voltage: | 230 V ac / 24 V dc |
Sensitivity Adjustment: | Manual and Automatic |
Output: | Relay and NPN |
Housing: | 56 x 177 x 138 |
Features: | Alarm and Time out outputs |
Supply Voltage: | 230 V ac / 24 V dc |
Voltage Tolerance: | ac: -12 % / +6 % - dc: +/- 15 % |
Current Consumption: | Max. 15 VA |
Max. Response Time, Transistor: | (Number of channels x 2 ms) + 2 ms |
Max. Response Time, Relay: | (Number of channels x 2 ms) + 10 ms |
Output, Relay: | 1 open/1 close, 250 V ac/3 A, 120 V ac/5 A |
Output, Transistor: | Max 24 V dc / 100 mA |
Alarm Output: | Yes |
Time Output: | Yes |
Power On Indicator: | Green LED |
Output Indicator: | Yellow LED |
Alarm Indicator: | Red LED |
SGR Detector Failure Indicator: | Red LED |
SGT Detector Failure Indicator: | Red LED |
Time-out Indicator: | Red LED |
Time-out Function: | 4 to 32 channels, selectable |
Housing Material: | Polycarbonate |
Vibration: | 10 – 55 Hz, 1,5 mm |
Shock: | 30 g |
Operation Temperature: | –10 to +40 °C |
Storage Temperature: | –40 to +80 °C |
Sealing Class: | IP 20 |
