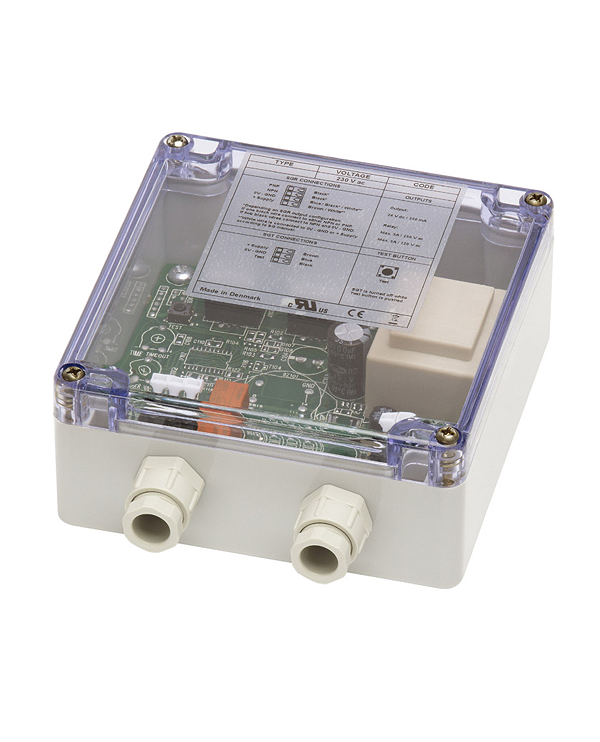

Telco 5634
SGC 1 B 500
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Function: | Power Supply |
| Supply Voltage: | 230 V ac |
| Output: | Relay |
| Housing: | 56 x 120 x 122 |
| Supply Voltage: | 230 V ac |
| Voltage Tolerance: | +/- 10 % |
| Current Consumption: | Max. 250 mA |
| Supply Output Voltage: | 24 V dc |
| Supply Output Current: | 150 mA |
| Relay Output: | 1 open/1 close, 250 V ac/3A, 120 V ac/5A |
| Test Input: | Test push button |
| Power On Indicator: | Green LED |
| Output Indicator: | Yellow LED |
| Housing Material: | ABS |
| Vibration: | 10 – 55 Hz, 1,5 mm |
| Shock: | 30 g |
| Operation Temperature: | –20 to +65 °C |
| Storage Temperature: | –40 to +80 °C |
| Sealing Class: | IP 41 |
