Product
Telco
12244
PA 01 B 510
Request a Quote

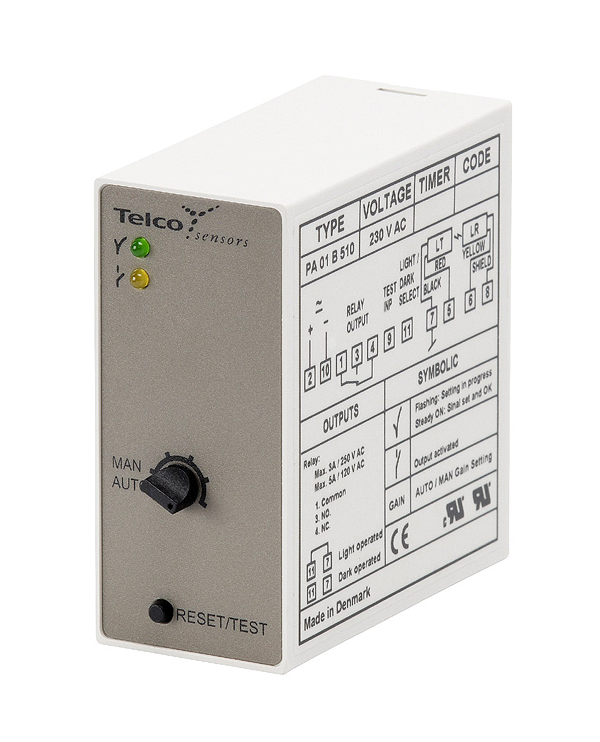

Image copyright: Telco
Telco 12244
PA 01 B 510
Photoelectric Amplifer. Remote Photoelectric Systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Function: | Amplifier |
| Supply Voltage: | 230 V ac |
| Sensing Range: | 45 m |
| Sensitivity Adjustment: | Automatic/Manual |
| Output: | Relay |
| Housing: | 11-pole DIN socket |
| Supply Voltage: | 230 V ac |
| Voltage Tolerance: | +/– 15 % |
| Current Consumption: | Max. 2,5 VA |
| Response Time ton / toff, Relay: | 45 ms / 45 ms |
| Output, Relay: | 1 open/1 close, 230 V ac/3 A, 120 V ac/5 A |
| Power On Indicator: | Green LED |
| Output Indicator: | Yellow LED |
| Signal Status Indicator: | Green LED |
| Sensor Monitor LED Drive: | Green LED on the receiver: ‘Power ON’ Yellow LED on the transmitter: PA 01 output activated |
| Hysteresis: | Approx. 20 % |
| Operation Frequency, Relay: | 11 Hz |
| Housing Material: | Noryl |
| Operation Temperature: | – 10 to +55 °C |
| Storage Temperature: | – 40 to +80 °C |
| Sealing Class: | IP 40 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
