Rechner Sensors
KX0085
Request a Quote
Image copyright: Rechner Sensors

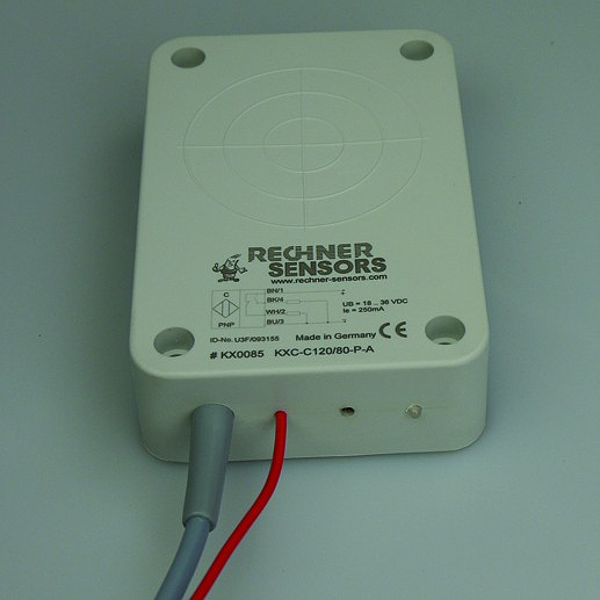

Rechner Sensors KX0085
KXC-5-1-C65/30-P-A-120x80x30-PBT-Z02
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive sensors. Series KXC-eXtreme. Housing 120 x 80 x 30 mm. Housing material: PBT. Sensor and evaluation unit integrated in one housing. Extreme large sensing distance
Downloads
Technical parameters
| Thread / Process connection: | 120 x 80 x 30 mm |
| Housing material active surface: | PBT |
| Housing material: | PBT |
| Electrical version: | 4-Leiter DC |
| Operating current (Ie): | 2 x 0…250 mA |
| Voltage drop max. (Ud): | ≤ 2,5 V |
| Permitted residual ripple max.: | 40% |
| Noload current (Io): | Typ. 50 mA |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 65 |
| Norm: | EN 60947-5-2 |
| Sensing dinstance Sn: | 60 mm |
| Operating distance min. / max. adjustable: | 5…100 mm |
| Operating voltage: | 18…36 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +55 °C |
| Installation: | Bündig / Nichtbündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Cable length: | 2 m |
| Connection: | PVC-Kabel, 4 x 0,34 mm² |
| CE: | JA |
| RoHS: | JA |
| MTTF: | 209,03 Jahre |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
