Product
Rechner Sensors
KI0161
Request a Quote
Image copyright: Rechner Sensors

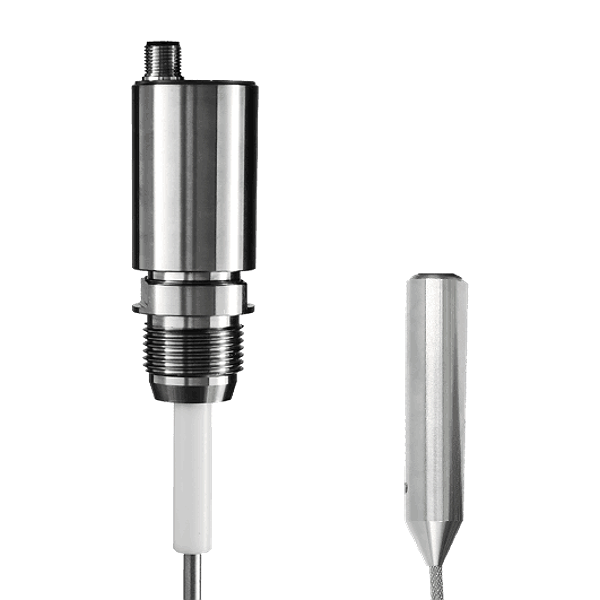

Rechner Sensors KI0161
KFI-1-R-20000-VAc/PTFE/VAc-D13-G1-IL4-ET-Y10
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive Filling Level Probe. Analogue current output 4…20 mA. For dry bulk materials and non-conductive liquids with low dielectric constant (e.g. oil). Adjustable with EasyTeach by Wire, EasyTeach by Magnet. With flange connector M 12 x 1 (5-pin incl. EasyTeach function). Level measurement over the entire active zone (M) up to a maximum of 20 m. Shortenable measuring probe incl. accessories for isolating fixation of the cable electrode. Optional: housing with temperature barrier for higher product temperatures. Optional: Process connection in various versions, i-Level
Downloads
Technical parameters
| Thread / Process connection: | G 1" |
| Housing material active surface: | Edelstahl Nr. 1.4404 |
| Housing material: | Edelstahl Nr. 1.4404, PTFE (FDA 21 CFR 177.1550) |
| Housing material lid: | PC (FDA 21 CFR 177.1580) |
| Electrical version: | 4-Leiter DC |
| Permitted residual ripple max.: | 5% |
| Noload current (Io): | Typ. 40 mA |
| LEDdisplay: | Grün |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Load resistance (RL): | ≤ 200 Ω |
| Operating voltage: | 15…30 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Output function: | Analog |
| Output signal: | 4 – 20 mA |
| Connection: | Steckerflansch M 12 x 1 |
| CE: | JA |
| RoHS: | JA |
| MTTF: | 737,46 Jahre |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
