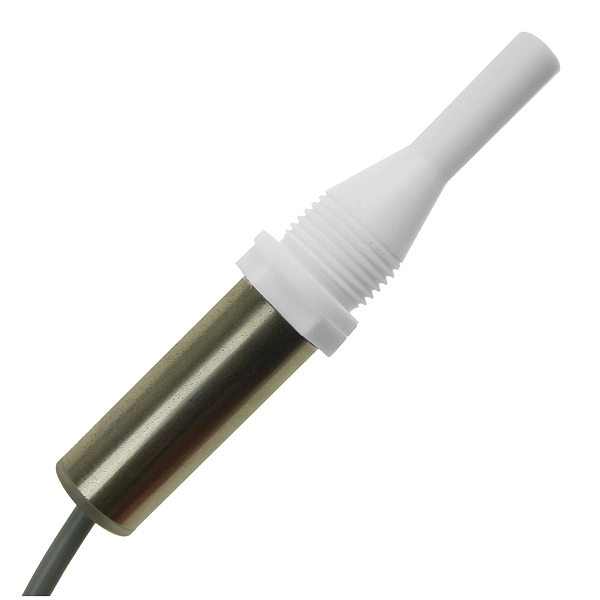

Rechner Sensors KI0159
KFI-51-49-25-PTFE/VAb-D10-G1/2-S-ETW-Z02
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Printing Industry. Capacitive sensors detect all kinds of inks:
Downloads
Technical parameters
| Thread / Process connection: | G 1/2" |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Edelstahl Nr. 1.4305 |
| Probe length: | 49 |
| Position of the switching points: | Frei wählbar |
| Active zone: | 25 mm |
| Electrical version: | 4-Leiter DC |
| Operating current (Ie): | 0…100 mA |
| Permitted residual ripple max.: | 5% |
| Noload current (Io): | Typ. 40 mA |
| Frequency of operating cycles max.: | 1 Hz |
| LEDdisplay: | Grün |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Operating voltage: | 15…30 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Output function: | Schließer |
| Output signal: | PNP / NPN automatische Erkennung |
| Cable length: | 2 m |
| Connection: | PVC-Kabel, 5 x 0,34 mm² |
| CE: | JA |
| RoHS: | JA |
| MTTF: | 1233,79 Jahre |
| WHG certification: | Auf Anfrage |
