Rechner Sensors
KI0150
Request a Quote

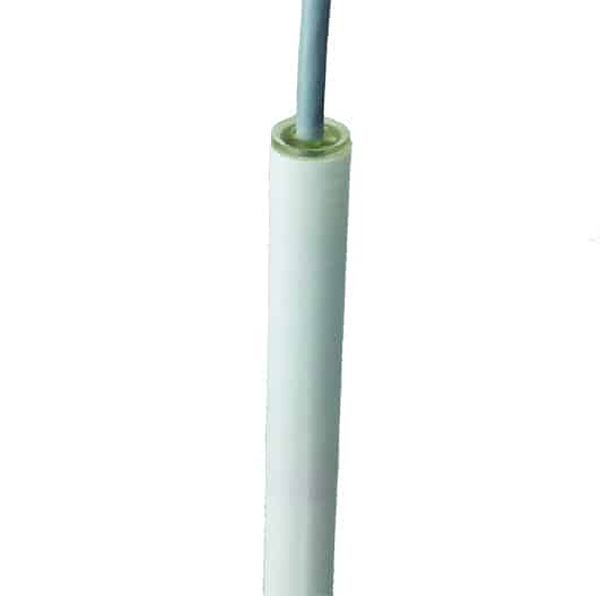

Image copyright: Rechner Sensors
Rechner Sensors KI0150
KFI-1-300-210-POM-D16-IL20-ETW-E-Z02
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Printing Industry. Capacitive sensors detect all kinds of inks:. Capacitive Filling Level Probe. Analogue current output 20…4 mA. Integrated evaluation electronics. EasyTeach by wire. Current output 20 mA = min. level / 4 mA = max. level. Housing material: POM. Blanking plug in stainless steel VA No. 1.4305 (AISI 303)
Downloads
Technical parameters
| Thread / Process connection: | Ø 16 mm |
| Housing material active surface: | POM |
| Housing material lid: | PC (FDA 21 CFR 177.1580) |
| Probe length: | 300 mm |
| Active zone: | 210 mm |
| Electrical version: | 4-Leiter DC |
| Permitted residual ripple max.: | 5% |
| Noload current (Io): | Typ. 40 mA |
| LEDdisplay: | Grün |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Load resistance (RL): | ≤ 200 Ω |
| Operating voltage: | 15…30 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Output function: | Analog |
| Output signal: | 20 – 4 mA |
| Cable length: | 2 m |
| Connection: | PVC-Kabel, 5 x 0,34 mm² |
| CE: | JA |
| RoHS: | JA |
| MTTF: | 737,46 Jahre |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
