Rechner Sensors
KI0091
Request a Quote
Image copyright: Rechner Sensors

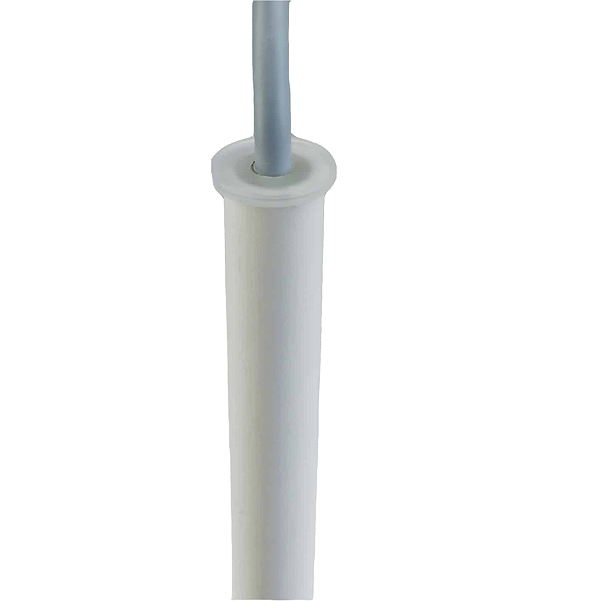

Rechner Sensors KI0091
KFI-1-224-120-PTFE-D16-IL4-ETW-Z0E
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
3D* Printing
Downloads
Technical parameters
| Thread / Process connection: | Ø 16 mm |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material lid: | PC (FDA 21 CFR 177.1580) |
| Probe length: | 224 mm |
| Active zone: | 120 mm |
| Electrical version: | 4-Leiter DC |
| Permitted residual ripple max.: | 5% |
| Noload current (Io): | Typ. 40 mA |
| LEDdisplay: | Grün |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Load resistance (RL): | ≤ 200 Ω |
| Operating voltage: | 15…30 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Output function: | Analog |
| Output signal: | 4 – 20 mA |
| Cable length: | Sonder |
| Connection: | PVC-Kabel, 5 x 0,34 mm² |
| CE: | JA |
| RoHS: | JA |
| MTTF: | 737,46 Jahre |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
