Product
Rechner Sensors
KF0645
Request a Quote
Image copyright: Rechner Sensors

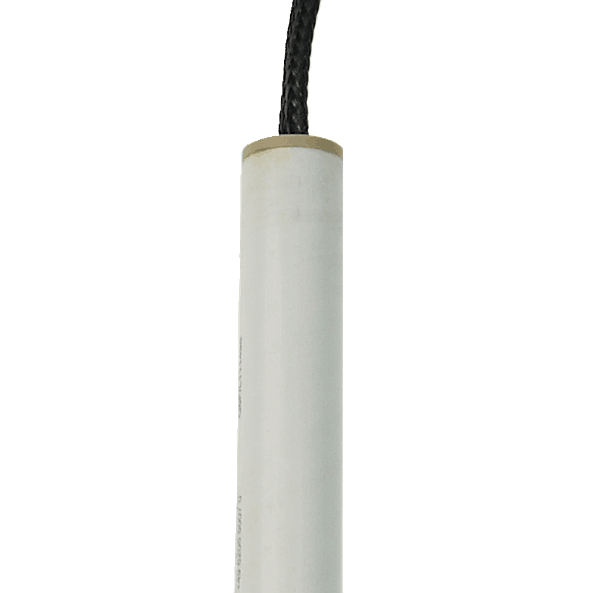

Rechner Sensors KF0645
KFS-1-85-600-370-PTFE-D16-X02-Y75
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive Filling Level Probe – KFS. TrueLevel. 250°C/482°F. With analogue measuring range. For connection to the capacitive amplifier KFA-1-…-Y70. Housing material: PTFE, Ø 16 mm. Automatic compensation of changes of the dielectric constant
Downloads
Technical parameters
| Thread / Process connection: | Ø 16 mm |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material lid: | PEEK (FDA 21 CFR 177.2415) |
| Probe length: | 600 |
| Length of the reference area (R)/ Electrode length: | 85 mm |
| Active zone: | 370 |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Permitted ambient temperature: | -25…+250 °C |
| Output function: | siehe Auswertegerät |
| Output signal: | siehe Auswertegerät |
| Cable length: | 2 m |
| Connection: | FEP-Kabel, Koax mit Stecker |
| Connection to probe: | Y75 |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
