Product
Rechner Sensors
KF0370
KFS-51-5-90-15-GFK-D16-X02-Y55
Request a Quote
Image copyright: Rechner Sensors

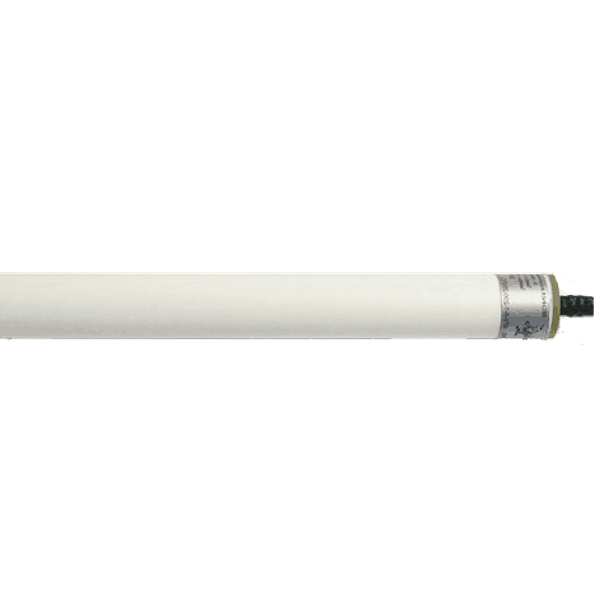

Rechner Sensors KF0370
KFS-51-5-90-15-GFK-D16-X02-Y55
KFS-5-1-90-15-Y55
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive Filling Level Probe – KFS. Series: PerLevel. 1 Limit value switching point. For connection to capacitive amplifi ers KFA-5-…-Y50. Housing material: GFK, Ø 16 mm. Probe length 90 mm
Downloads
Technical parameters
| Thread / Process connection: | Ø 16 mm |
| Housing material active surface: | GFK |
| Housing material lid: | PEEK (FDA 21 CFR 177.2415) |
| Probe length: | 90 mm |
| Length of the reference area (R)/ Electrode length: | 5 mm |
| Position of the switching points: | 15 mm |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Permitted ambient temperature: | -70…+200 °C |
| Output function: | siehe Auswertegerät |
| Output signal: | siehe Auswertegerät |
| Cable length: | 2 m |
| Connection: | FEP-Kabel, Koax mit Stecker |
| Connection to probe: | Y55 |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
