Product
Rechner Sensors
KF0316
Request a Quote
Image copyright: Rechner Sensors

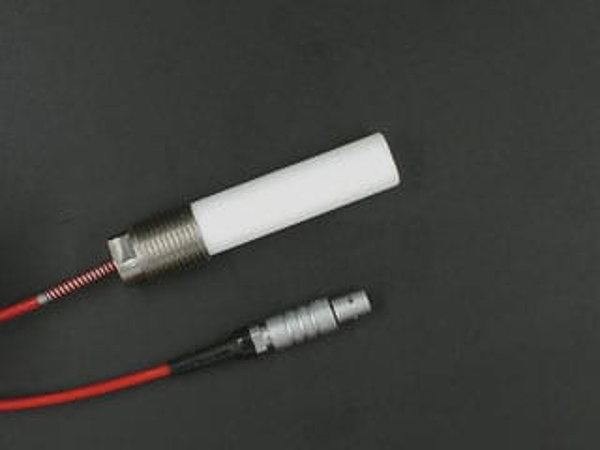

Rechner Sensors KF0316
KFS-51-5-60-10-PTFE/VA-D15-M18-X02-Y95
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Thread / Process connection: | M 18 x 1 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Edelstahl Nr. 1.4305 |
| Probe length: | 60 |
| Length of the reference area (R)/ Electrode length: | 5 mm |
| Position of the switching points: | 10 mm |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Permitted ambient temperature: | -25…+250 °C |
| Output function: | siehe Auswertegerät |
| Output signal: | siehe Auswertegerät |
| Cable length: | 2 m |
| Connection: | FEP-Kabel, Koax mit Stecker |
| Connection to probe: | Y95 |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
