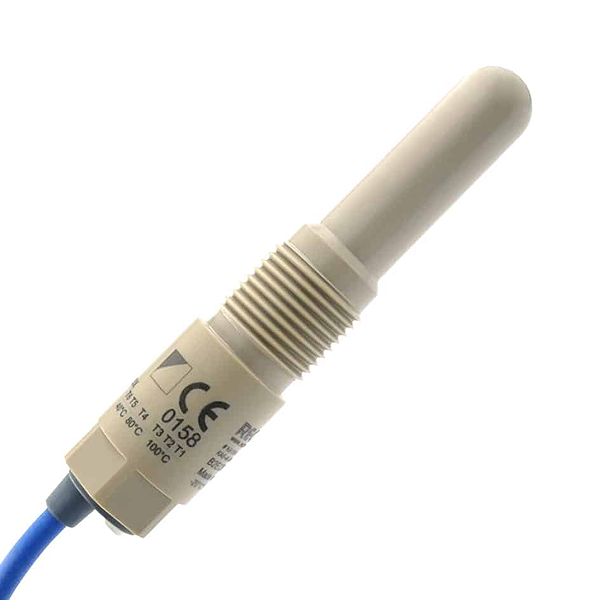

Rechner Sensors KA1514
KAS-40-26-N-K-G1/2"-PEEK-StEx, ATEX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive sensors with NAMUR output for level control in areas with risk of explosion, ATEX Zone 0 (Gas) and 20 (Dust). Both variants are available for flush and non-flush mounting in metal. Binary. Capacitive Sensors – S26. Series 40 – NAMUR EN 60947-5-6 – StEx – ATEX. Process connection: G 1/2“. For use in areas with the risk of gas explosion, zone 0. For use in areas with the risk of dust explosion, zone 20. Housing material: PEEK
Downloads
Technical parameters
| Thread / Process connection: | G 1/2" |
| Housing material active surface: | PEEK (FDA 21 CFR 177.2415) |
| Housing material: | PEEK (FDA 21 CFR 177.2415) |
| Housing material lid: | PC (FDA 21 CFR 177.1580) |
| Electrical version: | 2-Leiter DC |
| Permitted residual ripple max.: | 5% |
| Frequency of operating cycles max.: | 50 Hz |
| LEDdisplay: | Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-6 |
| Selfinductance (L): | 0,2 mH |
| Selfcapacitance (C): | 250 nF |
| Operating current active surface free: | < typ. 1,5 mA |
| Operating current active surface covered: | > typ. 2,5 mA |
| Sensing dinstance Sn: | produktberuehrend-mediumabhaengig-einstellbar |
| Operating distance min. / max. adjustable: | 1…6 mm |
| Operating voltage: | 5…15 V DC, Ui = 15 V DC |
| Permitted ambient temperature min.: | 0 °C |
| Permitted ambient temperature max.: | +70 °C |
| CIP / SIP: | CIP / SIP 121°C |
| Installation: | Nichtbündig |
| Output function: | NAMUR |
| Cable length: | 3 m |
| Connection: | PVC/PUR-Kabel, 2 x 0,14 mm² |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| ATEX product marking dust: | Ex II 1D Ex ia Ex IIIC T 101°C Da |
| ATEX product marking gas: | Ex II 1G Ex ia Ex IIC T1 – T6 Ga |
| Certified Zones ATEX: | 1G1D |
| IECEX product marking dust: | Ex ia IIIC T101° Da |
| IECEX product marking gas: | Ex ia IIC T1 – T6 Ga |
| MTTF: | 1232,06 Jahre |
| WHG certification: | Auf Anfrage |
