Rechner Sensors
KA1512
Request a Quote

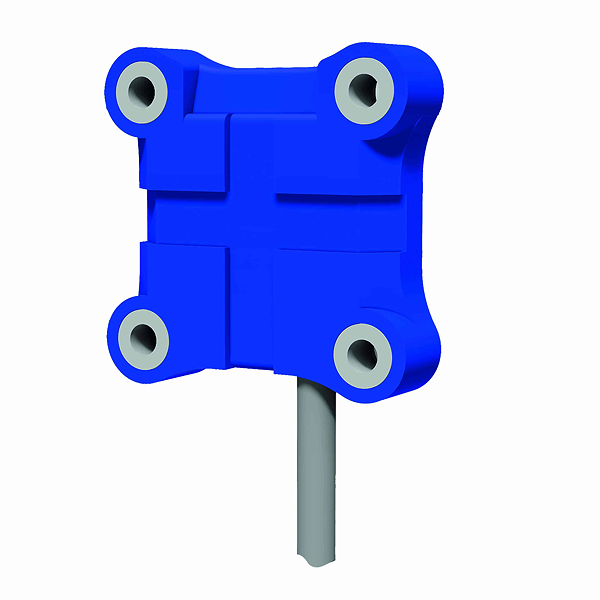

Image copyright: Rechner Sensors
Rechner Sensors KA1512
KAS-80-C30EM/8-S-34x34x8-PA-Y5C-ETW-HP
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
EasyMount. EasyTeach by wire (ETW)
Downloads
Technical parameters
| Thread / Process connection: | 34 x 34 x 8 |
| Housing material active surface: | PA |
| Housing material: | PA |
| Electrical version: | 3-Leiter DC |
| Operating current (Ie): | 0…250 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 2 Hz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | 5 mm |
| Operating distance min. / max. adjustable: | 0…10 mm |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Bündig |
| Output function: | Schließer |
| Output signal: | PNP |
| Cable length: | 2 m |
| Connection: | |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 529,1 Jahre |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
