Rechner Sensors
KA1403
Request a Quote
Image copyright: Rechner Sensors

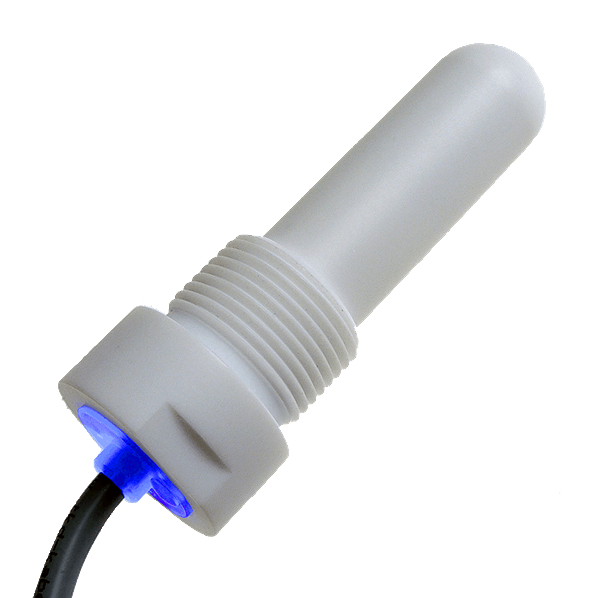

Rechner Sensors KA1403
KAS-80-26/113-A-G1-PTFE-Z02-1-BS-HP
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive Sensors with BlueSense. BlueSense – Capacitive Level Sensor with Bluetooth function. BlueSense is the ultimate auxiliary set-up tool for users who want current status and control of their level measurement. With the BlueSense application you know the sensor is within the optimum measuring range and if there are changes in the dielectric constant of the product to be measured. Deposits or product adhesion can also be determined. Bluetooth BlueSense. Industry 4.0
Downloads
Technical parameters
| Thread / Process connection: | G 1" |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | PTFE (FDA 21 CFR 177.1550) |
| Housing material lid: | PA |
| Electrical version: | 4-Leiter DC |
| Operating current (Ie): | 2 x 0…250 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 2 Hz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-2 |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | produktberuehrend-mediumabhaengig-einstellbar |
| Operating distance min. / max. adjustable: | 0…20 mm |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| CIP / SIP: | CIP / SIP 121°C |
| Installation: | Nichtbündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Cable length: | 2 m |
| Connection: | PVC-Kabel, 4 x 0,5 mm² |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 1199 Jahre |
| WHG certification: | Auf Anfrage |
