Rechner Sensors
KA1318
Request a Quote

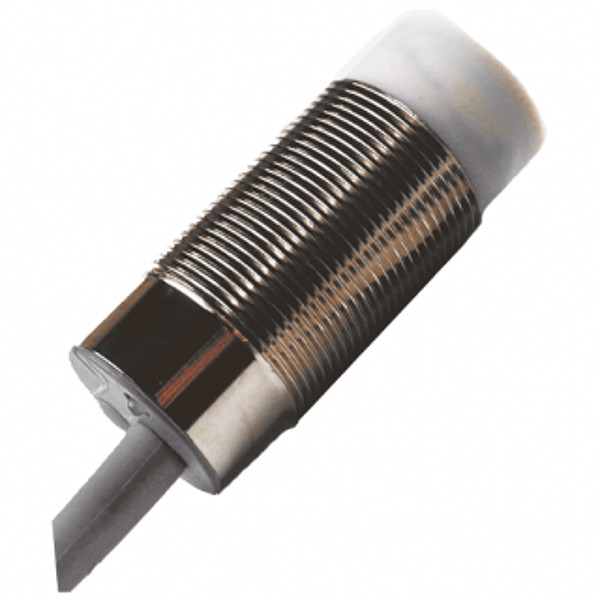

Image copyright: Rechner Sensors
Rechner Sensors KA1318
KAS-80-35-IL4/UL0-M32-PTFE/MS-Z02-1-HP
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Thread / Process connection: | M 32 x 1,5 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Messing |
| Housing material lid: | PA |
| Electrical version: | 4-Leiter DC |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-2;EN 60947-5-7 |
| Operating current active surface free: | ≤ 4 mA |
| Operating current active surface covered: | ≥ 20 mA |
| Load resistance (RL): | ≤ 600 Ω |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Linear range: | 0…25 mm |
| Operating range: | 0…35 mm |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | 0 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Nichtbündig |
| Output function: | Analog |
| Output signal: | 4 – 20 mA / 0 – 10 V |
| Cable length: | 2 m |
| Connection: | PVC-Kabel, 4 x 0,5 mm² |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 585,86 Jahre |
| WHG certification: | Auf Anfrage |
