Rechner Sensors
KA1293
Request a Quote
Image copyright: Rechner Sensors

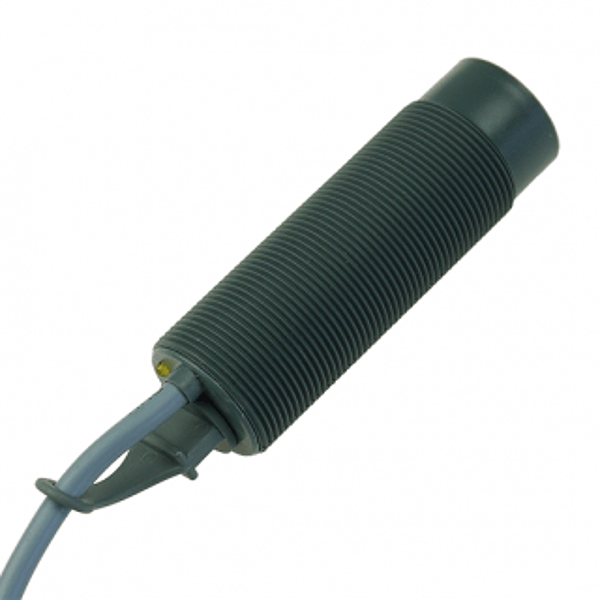

Rechner Sensors KA1293
KAS-90-A24/90-P-M30-PBT-TD-Z02-1-NL
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive Sensors. Series 90 – AC / DC. Housing M 30 x 1.5. Housing material: PBT. Sensing distance 2…20 mm adjustable. NO and NC function changeable. Switch-on and switch-off delay changeable. Adjustable timer 1 sec – 10 min.
Downloads
Technical parameters
| Thread / Process connection: | M 30 x 1,5 |
| Housing material active surface: | PBT |
| Housing material: | PBT |
| Housing material lid: | PBT |
| Electrical version: | 2-Leiter AC / DC |
| Operating current (Ie): | 5…330 mA (ETL = 250 mA) |
| Load current min.: | 5 mA |
| Voltage drop max. (Ud): | ≤ 6 V |
| Noload current (Io): | Typ. 25 mA |
| Frequency of operating cycles max.: | 2 Hz |
| LEDdisplay: | Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-2 |
| Time delay: | 1 Sek. – 10 Min. |
| Sensing dinstance Sn: | 15 mm |
| Operating distance min. / max. adjustable: | 2…20 mm |
| Operating voltage: | 20…250 V AC / DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Nichtbündig |
| Output function: | Schließer / Öffner umschaltbar |
| Output signal: | FET |
| Cable length: | 2 m |
| Connection: | PVC-Kabel, 2 x 0,75 mm² |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 1080,65 Jahre |
| WHG certification: | Auf Anfrage |
