Product
Rechner Sensors
KA1258
KAS-40-26/113-N-Tri-PTFE-Z15-1-1G-1D
Request a Quote

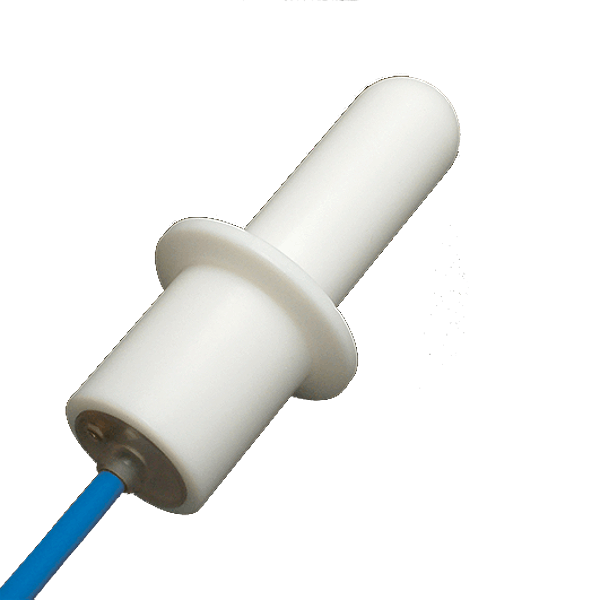

Image copyright: Rechner Sensors
Rechner Sensors KA1258
KAS-40-26/113-N-Tri-PTFE-Z15-1-1G-1D
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive Sensors. Serie 40 – NAMUR EN 60947-5-6. Housing: Triclamp. Triclamp Tri-Clover Triclover Tri Clover Tri Clamp. For use in areas with the risk of dust explosion, zone 20. For use in areas with the risk of gas explosion, zone 0. Housing material: PTFE. SIP / CIP 121 °C. For Food, high chemical resistance. DMT 03 ATEX E 048 IECEx BVS 07.0031. II 1G Ex ia IIC T1-T6 Ga Ex ia IIC T1-T6 Ga. II 1D Ex ia IIIC T101°C Da Ex ia IIIC T101°C Da
Downloads
Technical parameters
| Thread / Process connection: | Triclamp |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | PTFE (FDA 21 CFR 177.1550) |
| Housing material lid: | PC (FDA 21 CFR 177.1580) |
| Electrical version: | 2-Leiter DC |
| Permitted residual ripple max.: | 5% |
| Frequency of operating cycles max.: | 50 Hz |
| LEDdisplay: | Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-6 |
| Selfinductance (L): | 0,2 mH |
| Selfcapacitance (C): | 250 nF |
| Operating current active surface free: | < typ. 1,5 mA |
| Operating current active surface covered: | > typ. 3 mA |
| Sensing dinstance Sn: | produktberuehrend-mediumabhaengig-einstellbar |
| Operating distance min. / max. adjustable: | 0…15 mm |
| Operating voltage: | 5…15 V DC, Ui = 15 V DC |
| Permitted ambient temperature min.: | 0 °C |
| Permitted ambient temperature max.: | +70 °C |
| CIP / SIP: | CIP / SIP 121°C |
| Installation: | Nichtbündig |
| Output function: | NAMUR |
| Cable length: | 15 m |
| Connection: | PUR-Kabel, 2 x 0,75 mm² |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| ATEX product marking dust: | Ex II 1D Ex ia Ex IIIC T 101°C Da |
| ATEX product marking gas: | Ex II 1G Ex ia Ex IIC T1 – T6 Ga |
| Certified Zones ATEX: | 1G1D |
| IECEX product marking dust: | Ex ia IIIC T101° Da |
| IECEX product marking gas: | Ex ia IIC T1 – T6 Ga |
| MTTF: | 760,32 Jahre |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
