Rechner Sensors
KA1237

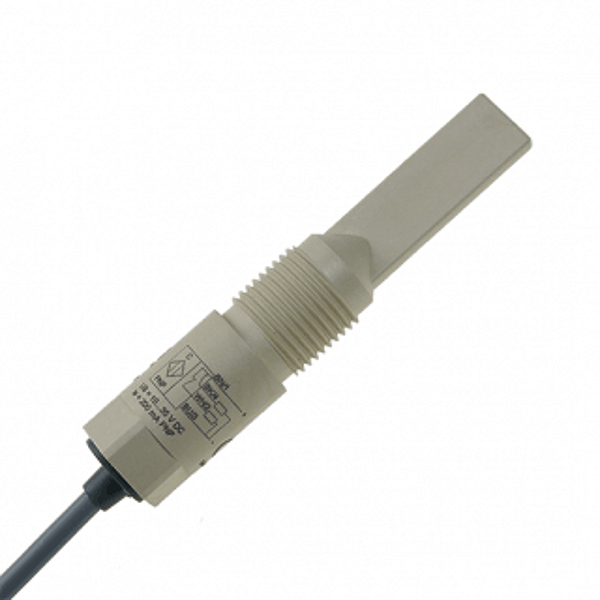

Rechner Sensors KA1237
KAS-80-P50-A-G1/2-LCP-Z02-1-HP
Description
Capacitive Sensors – Leak detection sensors with certificate according to the Water Protection Act (WHG). Smart Paddle. Mount and Go. Capacitive Sensors. Series 80 – PNP. Housing G1/2“. Housing material: LCP. SIP / CIP 121° C. Special version with flange. Sealing can be made with, a gasket or PTFE-tape (not delivered with the sensor). Leakage control. Overfill prevention. Advantages SMARTPADDLE:. Sensitivity is pre-adjusted. Measurementisindependentofthe, mounting position. Permitted pressure on the active, area: 10 bar. Process connection G 1/2”. Capacitive. Overfill. Leakage Control. For Containers that contain water-polluting liquids, the Water Resources Act (in Germany WHG) prescribes overfill protection. Also the leak detection sensors, which are placed in the drip trays serve as a, water protection device in accordance with the water protection Act (WHG).
Downloads
Technical parameters
| Thread / Process connection: | G 1/2" |
| Housing material active surface: | LCP |
| Housing material: | LCP |
| Housing material lid: | PA |
| Electrical version: | 4-Leiter DC |
| Operating current (Ie): | 2 x 0…250 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 2 Hz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-2 |
| Sensitivity: | Er 2…80 |
| Pressure: | 10 bar |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | produktberuehrend-mediumabhaengig-einstellbar |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Nichtbündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Cable length: | 2 m |
| Connection: | PVC-Kabel, 4 x 0,34 mm² |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 529,1 Jahre |
| WHG certification: | JA |
| Leakage control certification: | Z-65.40-573 |
| Overfill prevention certification: | Z-65.13-572 |
