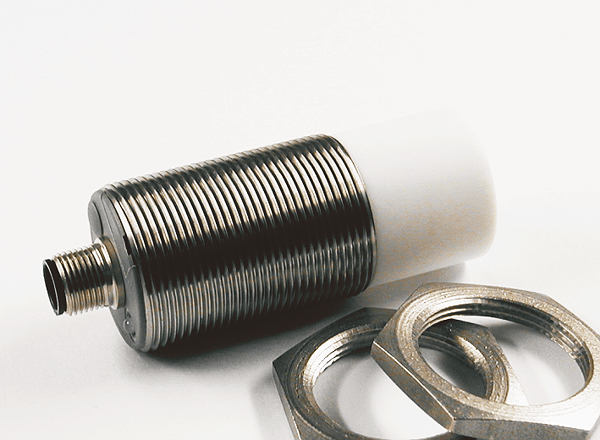

Image copyright: Rechner Sensors
Rechner Sensors KA1166
KAS-80-34-A-M32-PTFE/VA-ETW-Y10-3D, ATEX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive Sensor. Series 80 – PNP. Housing M 32 x 1.5. Capacitive sensor for level and position control. Housing material: Stainless steel VA No. 1.4305 (AISI 303). Sensing distance 1…40 mm adjustable. With flange connector M 12 x 1. Operating distance adjustable with EasyTeach by Wire. Optical guidance during the teach process with the aid of a 2-colour LED. II 3D Ex mc IIIC T101°C Dc IP67 X
Downloads
Technical parameters
| Thread / Process connection: | M 32 x 1,5 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Edelstahl Nr. 1.4305 |
| Housing material lid: | PA |
| Electrical version: | 4-Polig DC |
| Operating current (Ie): | 2 x 0…150 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 25 Hz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | 25 mm |
| Operating distance min. / max. adjustable: | 1…40 mm |
| Operating voltage: | 10…30 V DC |
| Permitted ambient temperature min.: | -20 °C |
| Permitted ambient temperature max.: | +70 °C |
| CIP / SIP: | CIP / SIP 121°C |
| Installation: | Nichtbündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Connection: | Steckerflansch M 12 x 1 |
| CE: | JA |
| RoHS: | JA |
| ATEX product marking dust: | Ex II 3D IP67 T101° C X |
| Certified Zones ATEX: | 3D |
| MTTF: | 733 Jahre |
| WHG certification: | Auf Anfrage |
