Product
Rechner Sensors
KA0985
Request a Quote

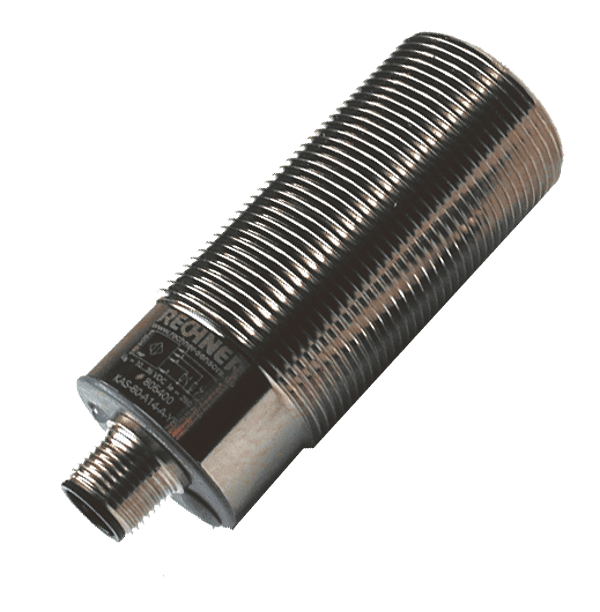

Image copyright: Rechner Sensors
Rechner Sensors KA0985
KAS-80-A14-A-M30-PTFE/MS-Y10-ETW
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive Sensors. Series 80 – PNP. Housing M 30 x 1.5. EasyTeach by wire ETW. Housing material: Brass. Sensing distance 0.5…25 mm adjustable. With flange connector M 12 x
Downloads
Technical parameters
| Thread / Process connection: | M 30 x 1,5 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Messing |
| Housing material lid: | PA |
| Electrical version: | 4-Polig DC |
| Operating current (Ie): | 3 x 0…250 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 25 Hz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Sensing dinstance Sn: | 10 mm |
| Operating distance min. / max. adjustable: | 0,5…25 mm |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Bündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Connection: | Steckerflansch M 12 x 1 |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 320,79 Jahre |
| WHG certification: | Auf Anfrage |
