Rechner Sensors
KA0747
Request a Quote

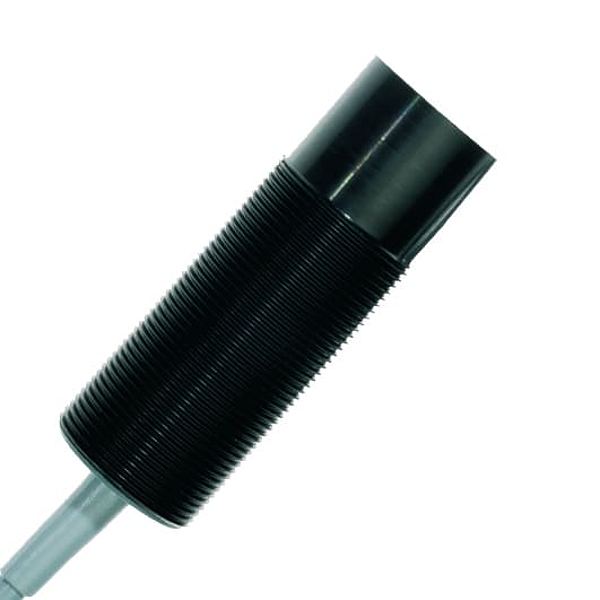

Image copyright: Rechner Sensors
Rechner Sensors KA0747
KAS-95-A24-1CO-M30-POM-Z02-1-HP
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive. Overfill. Leakage Control. For Containers that contain water-polluting liquids, the Water Resources Act (in Germany WHG) prescribes overfill protection. Also the leak detection sensors, which are placed in the drip trays serve as a, water protection device in accordance with the water protection Act (WHG).
Downloads
Technical parameters
| Thread / Process connection: | M 30 x 1,5 |
| Housing material active surface: | POM |
| Housing material: | POM |
| Housing material lid: | PA |
| Electrical version: | 5-Leiter AC / DC |
| Noload current (Io): | 2,1 mA |
| Frequency of operating cycles max.: | 2 Hz |
| LEDdisplay: | Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-2 |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | produktberuehrend-mediumabhaengig-einstellbar |
| Operating distance min. / max. adjustable: | 2…20 mm |
| Operating voltage: | 20…250 V AC / DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Nichtbündig |
| Output function: | 1 x Potentialfreier Wechselkontakt |
| Output signal: | Relais |
| Cable length: | 2 m |
| Connection: | PVC-Kabel, 5 x 0,34 mm² |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 952,35 Jahre |
| WHG certification: | JA |
| Leakage control certification: | Z-65.40-573 |
| Overfill prevention certification: | Z-65.13-572 |
