Rechner Sensors
KA0692
Request a Quote

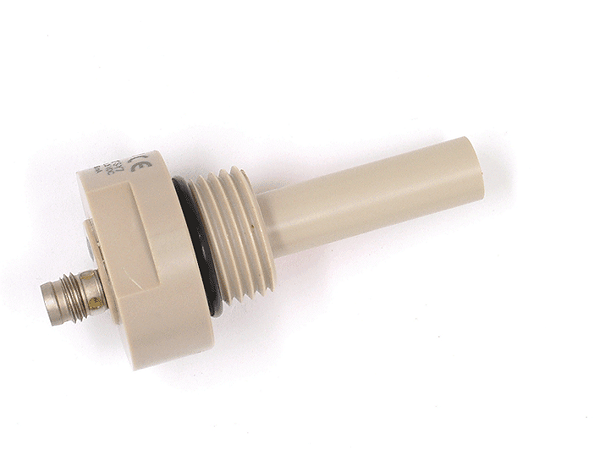

Image copyright: Rechner Sensors
Rechner Sensors KA0692
KAS-80-A22-S-G1/2-PEEK-Y7-1-E-HP
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive Sensors. Series 80 – PNP. Housing G 1/2”. Housing material: PEEK. CIP 121° C. Sensing distance 1…6 mm adjustable. With flange connector M 8 x 1. Whitworth G 1/2 inch. G = Whitworth Pipe Thread (BSP – British Standard Pipe). Cylindrical shape, EN ISO 228-1. Parallel internal and external threads. Cylindrical – metallic non sealing.
Downloads
Technical parameters
| Thread / Process connection: | G 1/2" |
| Housing material active surface: | PEEK (FDA 21 CFR 177.2415) |
| Housing material: | PEEK (FDA 21 CFR 177.2415) |
| Housing material lid: | PA / PPO |
| Electrical version: | 3-Polig DC |
| Operating current (Ie): | 0…250 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 10 mA |
| Frequency of operating cycles max.: | 1,5 kHz |
| LEDdisplay: | Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-2 |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | 2 mm |
| Operating distance min. / max. adjustable: | 1…6 mm |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Nichtbündig |
| Output function: | Schließer |
| Output signal: | PNP |
| Connection: | Steckerflansch M 8 x 1 |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 1700,98 Jahre |
| WHG certification: | Auf Anfrage |
