Rechner Sensors
IA9511
Request a Quote

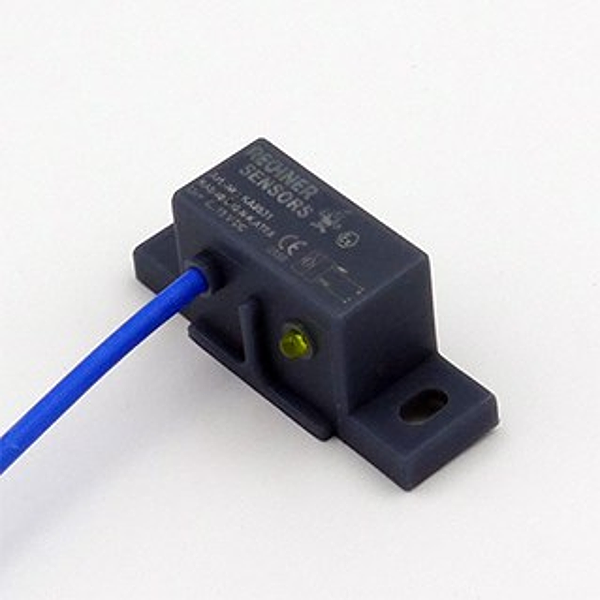

Image copyright: Rechner Sensors
Rechner Sensors IA9511
IAS-30-D5-N-K, ATEX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Contact-less door monitoring. ATEX Zone 0
Downloads
Technical parameters
| Housing material active surface: | PA |
| Housing material: | PA |
| Electrical version: | 2-Leiter DC |
| Permitted residual ripple max.: | 5% |
| Frequency of operating cycles max.: | 1 kHz |
| LEDdisplay: | Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP67 |
| Norm: | EN 60947-5-6 |
| Selfinductance (L): | 2 mH |
| Selfcapacitance (C): | 250 nF |
| Operating current active surface free: | > typ. 2 mA |
| Operating current active surface covered: | < typ. 1,5 mA |
| Sensing dinstance Sn: | 5 mm |
| Operating voltage: | 5 15 V DC, Ui = 15 V DC |
| Permitted ambient temperature min.: | -20 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Bündig |
| Output function: | NAMUR |
| Cable length: | 2 m |
| Connection: | PUR-Kabel, 2 x 0,2 mm² |
| CE: | JA |
| RoHS: | JA |
| ATEX product marking gas: | Ex II 1G Ex ia Ex IIC T1 – T6 Ga |
| Certified Zones ATEX: | 1G |
| IECEX product marking gas: | Ex ia IIC T1 – T6 Ga |
| MTTF: | 3664,46 Jahre |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
