Rechner Sensors
IA0279
IAS-30-A24-N-M30-PVC/MS-Z20-0-1G
Request a Quote

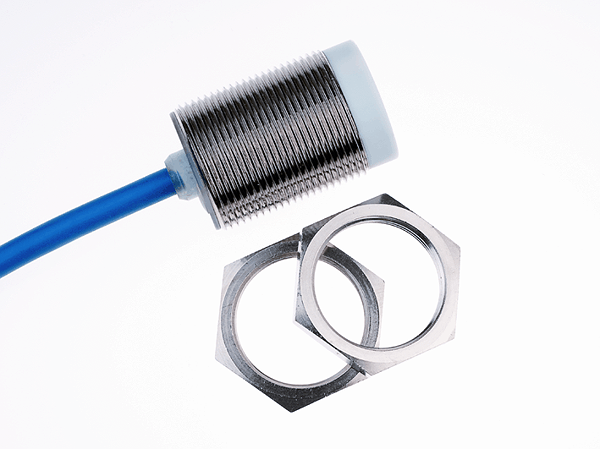

Image copyright: Rechner Sensors
Rechner Sensors IA0279
IAS-30-A24-N-M30-PVC/MS-Z20-0-1G
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Inductive Sensors. Series 30 – NAMUR EN 60947-5-6. Housing M 30 x 1.5. Housing material: Brass. For use in areas with the risk of gas explosion, zone 0. For use in areas with the risk of dust explosion, zone 20. Sensing distance Sn = 15 mm. DMT 03 ATEX E 048 IECEx BVS 07.0031. II 1G Ex ia IIC T1-T6 Ga Ex ia IIC T1-T6 Ga. II 1D Ex ia IIIC T101°C Da Ex ia IIIC T101°C Da. CNEX
Downloads
Technical parameters
| Thread / Process connection: | M 30 x 1,5 |
| Housing material active surface: | PVC |
| Housing material: | Messing |
| Housing material lid: | PA |
| Electrical version: | 2-Leiter DC |
| Permitted residual ripple max.: | 5% |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-6 |
| Selfinductance (L): | 2 mH |
| Selfcapacitance (C): | 250 nF |
| Operating current active surface free: | > typ. 2 mA |
| Operating current active surface covered: | < typ. 1,5 mA |
| Sensing dinstance Sn: | 15 mm |
| Operating voltage: | 5…15 V DC, Ui = 15 V DC |
| Permitted ambient temperature min.: | -20 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Nichtbündig |
| Output function: | NAMUR |
| Cable length: | 20 m |
| Connection: | PUR-Kabel, 2 x 0,75 mm² |
| CE: | JA |
| RoHS: | JA |
| ATEX product marking gas: | Ex II 1G Ex ia Ex IIC T1 – T6 Ga |
| Certified Zones ATEX: | 1G |
| IECEX product marking gas: | Ex ia IIC T1 – T6 Ga |
| MTTF: | 3664,46 Jahre |
| WHG certification: | Auf Anfrage |
