Rechner Sensors
IA0276
Request a Quote

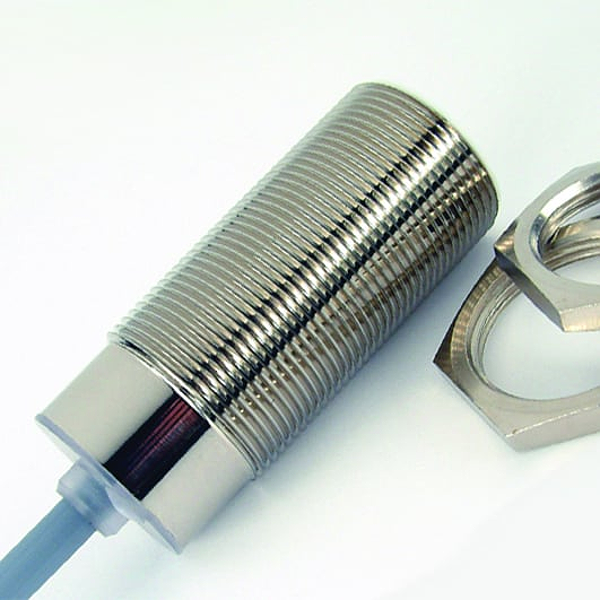

Image copyright: Rechner Sensors
Rechner Sensors IA0276
IAS-10-A14-A-PTFE/VA-StEx, ATEX, 10 m
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Inductive Sensors. Series 10 – PNP – StEx – ATEX. Housing M 30 x 1.5. Housing material: Brass. For use in areas with the risk of dust explosion, zone 20. For use in areas with the risk of gas explosion, zone 1. Sensing distance Sn 10 mm. DMT 01 ATEX E 157 IECEx BVS 07.0015. II 2 G Ex mb IIC T4 Gb Ex mb IIC T4 Gb. II 1/2 D Ex ta/tb IIIC T101°C Da/Db Ex ta/tb IIIC T101°C Da/Db
Downloads
Technical parameters
| Thread / Process connection: | M 30 x 1,5 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Edelstahl Nr. 1.4305 |
| Housing material lid: | PA / PPO |
| Electrical version: | 4-Leiter DC |
| Operating current (Ie): | 2 x 0…150 mA |
| Voltage drop max. (Ud): | ≤ 2,5 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 1 kHz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Sensing dinstance Sn: | 10 mm |
| Operating voltage: | 10…30 V DC |
| Permitted ambient temperature min.: | -20 °C |
| Permitted ambient temperature max.: | +90 °C |
| Installation: | Bündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Cable length: | 10 m |
| Connection: | PVC-Kabel, 5 x 0,34 mm² |
| CE: | JA |
| RoHS: | JA |
| ATEX product marking dust: | Ex II 1/2 D Ex ta/tb Ex IIIC T101°C Da/Db |
| ATEX product marking gas: | Ex II 2G Ex mb Ex IIC T4 Gb |
| Certified Zones ATEX: | 2G1/2D |
| IECEX product marking dust: | Ex ta/tb IIIC T101°C Da/Db |
| IECEX product marking gas: | Ex mb IIC T4 Gb |
| MTTF: | 1218 Jahre |
| WHG certification: | Auf Anfrage |
