Product
Rechner Sensors
AF0064
Request a Quote

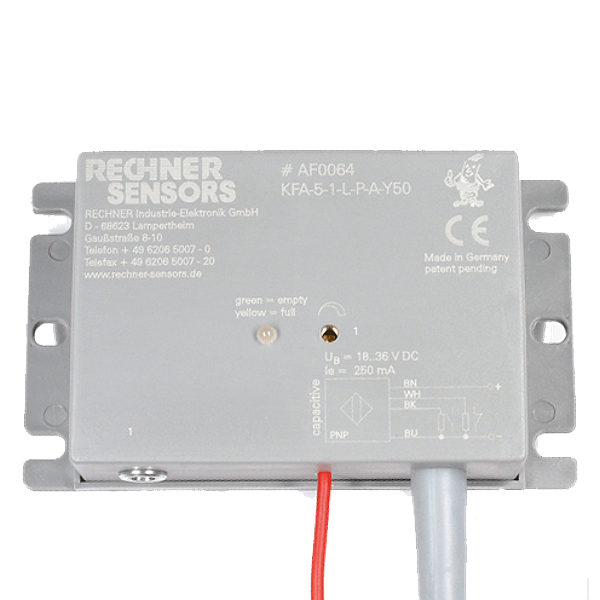

Image copyright: Rechner Sensors
Rechner Sensors AF0064
KFA-5-1-L-P-A-Z02-Y50
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive filling level evaluation unit. NPN output. PNP output. For capacitive filling level probes with 1 limit value switching point: KFS-51-…-Y55. Operating voltage: 18…36 V DC. PerLevel
Downloads
Technical parameters
| Housing material: | PA |
| Electrical version: | 4-Leiter DC |
| Operating current (Ie): | 0…250 mA pro Kanal |
| Voltage drop max. (Ud): | ≤ 2,5 V |
| Permitted residual ripple max.: | 40% |
| Noload current (Io): | Typ. 50 mA |
| Frequency of operating cycles max.: | 4 Hz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 54 |
| Norm: | EN 60947-5-2 |
| Operating voltage: | 18…36 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +55 °C |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Cable length: | 2 m |
| Connection: | PVC-Kabel, 4 x 0,34 mm² |
| Connection to probe: | Y50 |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 209,03 Jahre |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
