Product
Rechner Sensors
800736
Request a Quote
Image copyright: Rechner Sensors

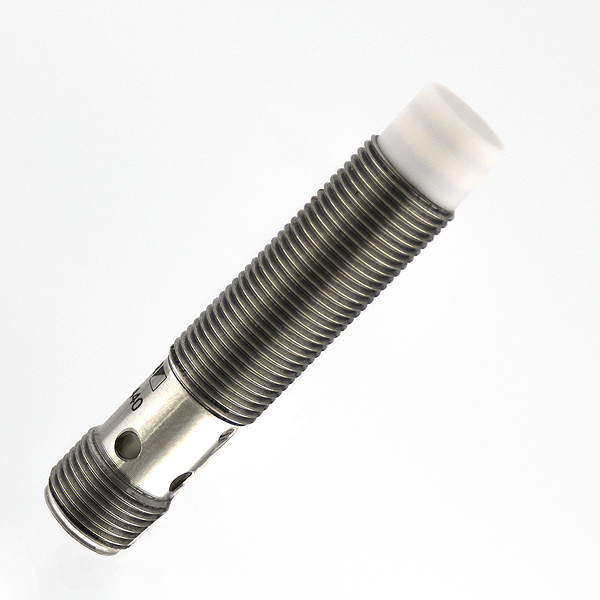

Rechner Sensors 800736
KAS-80-A22-A-M12-PTFE/VAb-Y5-1-HP
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive Sensor. Series 80 – PNP. Housing M 12 x 1. Capacitive sensor for level and position control. Housing material: Stainless steel VA No. 1.4305 (AISI 303). Sensing distance 0,5…10 mm adjustable. With flange connector M 12 x 1
Downloads
Technical parameters
| Thread / Process connection: | M 12 x 1 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Edelstahl Nr. 1.4305 |
| Electrical version: | 4-Polig DC |
| Operating current (Ie): | 2 x 0…250 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 50 Hz |
| LEDdisplay: | Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-2 |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | 4 mm |
| Operating distance min. / max. adjustable: | 0,5…10 mm |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Nichtbündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Connection: | Steckerflansch M 12 x 1 |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 1700,98 Jahre |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
