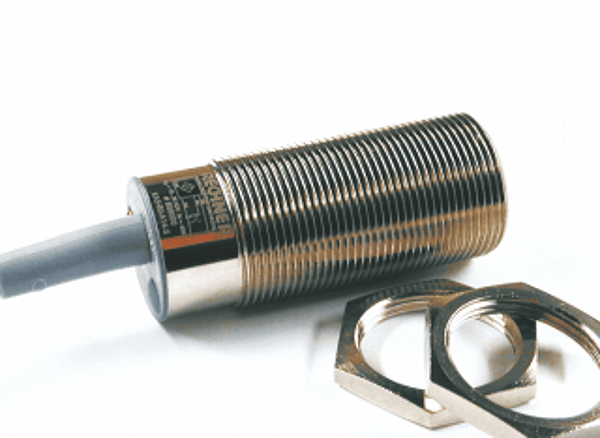

Image copyright: Rechner Sensors
Rechner Sensors 607300
IAS-60-A14-S-M30-PVC/MS-Z02-0
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Thread / Process connection: | M 30 x 1,5 |
| Housing material active surface: | PVC |
| Housing material: | Messing |
| Housing material lid: | PA |
| Electrical version: | 2-Leiter AC / DC |
| Operating current (Ie): | 9…300 mA |
| Load current min.: | 9 mA |
| Voltage drop max. (Ud): | ≤ 6 V |
| Noload current (Io): | Typ. 3,5 mA |
| Frequency of operating cycles max.: | 25 Hz |
| LEDdisplay: | Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Sensing dinstance Sn: | 10 mm |
| Operating voltage: | 20…250 V AC / DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Bündig |
| Output function: | Schließer |
| Output signal: | Transistor |
| Cable length: | 2 m |
| Connection: | PVC-Kabel, 3 x 0,75 mm² |
| CE: | JA |
| RoHS: | JA |
| MTTF: | 1080,65 Jahre |
| WHG certification: | Auf Anfrage |
