Product
Rechner Sensors
561600
Request a Quote
Image copyright: Rechner Sensors

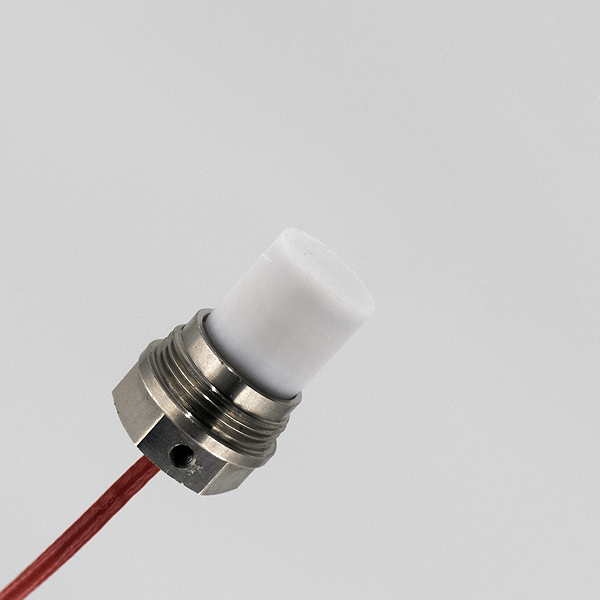

Rechner Sensors 561600
KS-250-M18/30-X-M18-PTFE/VAb-250C-X0E/Y26-0
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive high temperature sensors. Series 250. Housing M 18 x 1. F or connection to capacitive evaluation units KSA-…-BB-…-Y26. Housing material: Stainless steel VA 1.4305 / AISI 303. Useable for an ambient temperature ‑200…+250 °C. Sensing distance 0…5 mm adjustable at the evaluation unit
Downloads
Technical parameters
| Thread / Process connection: | M 18 x 1 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Edelstahl Nr. 1.4305 |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Sensing dinstance Sn: | 3 mm |
| Operating distance min. / max. adjustable: | 0…5 mm |
| Permitted ambient temperature min.: | -200 °C |
| Permitted ambient temperature max.: | +250 °C |
| Installation: | Nichtbündig |
| Output function: | siehe Auswertegerät |
| Output signal: | siehe Auswertegerät |
| Cable length: | Sonder |
| Connection: | FEP-Kabel, Triax |
| CE: | JA |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
