Product
Rechner Sensors
498002
Request a Quote
Image copyright: Rechner Sensors

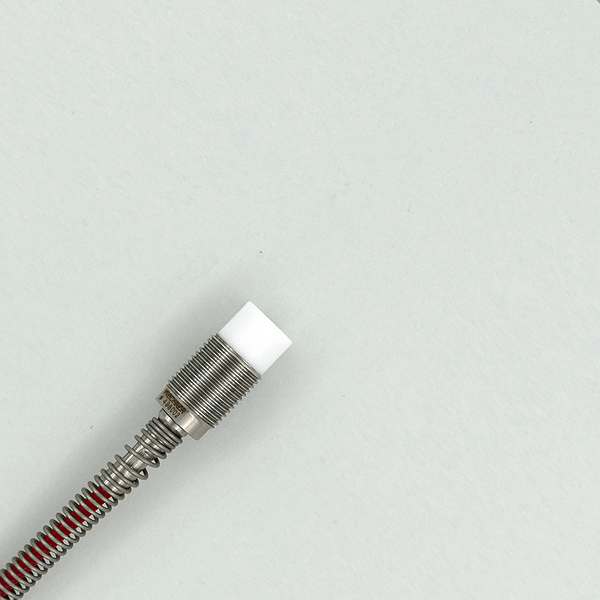

Rechner Sensors 498002
KXS-250-M12/25-X-M12-PTFE/VAb-250C-X02/Y95
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive sensors. Series KXS-eXtreme. Housing M 12 x 1. Housing material: Stainless steel VA no. 1.4305 / AISI 303. For connection to capacitive evaluation units KXA-…MINI-…. Extreme large sensing distance. Up to 250° C ambient temperature. 482°F. Y95
Downloads
Technical parameters
| Thread / Process connection: | M 12 x 1 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Edelstahl Nr. 1.4305 |
| Norm: | EN 60947-5-2 |
| Sensing dinstance Sn: | 15 mm |
| Operating distance min. / max. adjustable: | 1…25 mm |
| Permitted ambient temperature min.: | -70 °C |
| Permitted ambient temperature max.: | +250 °C |
| Installation: | Bündig / Nichtbündig |
| Output function: | siehe Auswertegerät |
| Output signal: | siehe Auswertegerät |
| Cable length: | 2 m |
| Connection: | FEP-Kabel, Triax |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
