Product
Rechner Sensors
405150
Request a Quote
Image copyright: Rechner Sensors

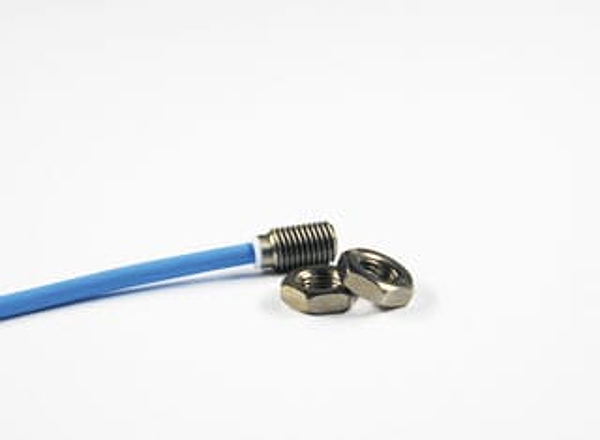

Rechner Sensors 405150
KAS-42-M8/15-N-M8-PTFE/VAb-Z02-0
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Thread / Process connection: | M 8 x 1 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Edelstahl Nr. 1.4305 |
| Electrical version: | 2-Leiter DC |
| Permitted residual ripple max.: | 5% |
| Frequency of operating cycles max.: | 50 Hz |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-6 |
| Selfinductance (L): | 0 yH |
| Selfcapacitance (C): | 210 nF |
| Operating current active surface free: | < typ. 1,5 mA |
| Operating current active surface covered: | > typ. 3 mA |
| Sensing dinstance Sn: | 1,5 mm |
| Operating distance min. / max. adjustable: | 0,2…2 mm |
| Operating voltage: | 5…10 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Bündig |
| Output function: | NAMUR |
| Cable length: | 2 m |
| Connection: | PUR-Kabel, 2 x 0,14 mm² |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 5568,54 Jahre |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
