Product
Rechner Sensors
360900
Request a Quote
Image copyright: Rechner Sensors

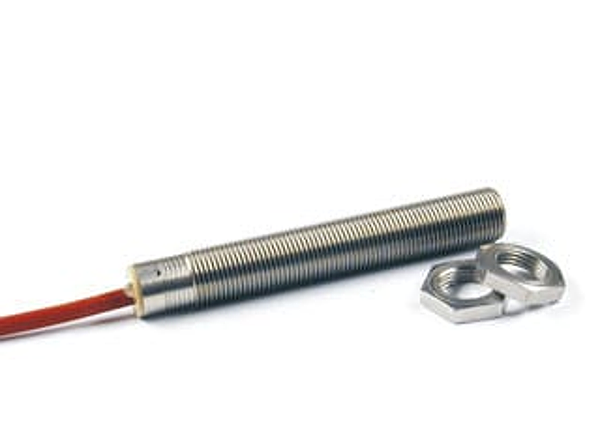

Rechner Sensors 360900
MRS-10-350-S-M12-VAb-Z02-0
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Thread / Process connection: | M 12 x 1 |
| Housing material active surface: | Edelstahl Nr. 1.4305 |
| Housing material: | Edelstahl Nr. 1.4305 |
| Housing material lid: | Edelstahl Nr. 1.4305 |
| Electrical version: | 4-Leiter DC |
| Operating current (Ie): | 2 x 0…250 mA |
| Voltage drop max. (Ud): | ≤ 2,5 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 0,5 Hz / 15 kHz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67, IP 69K |
| Norm: | EN 60947-5-2 |
| detection of direction of rotation: | JA |
| Sensing dinstance Sn: | 1 mm |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -40 °C |
| Permitted ambient temperature max.: | +125 °C |
| Installation: | Bündig |
| Output function: | Schließer |
| Output signal: | PNP |
| Cable length: | 2 m |
| Connection: | Silikon-Kabel, 4 x 0,14 mm² |
| CE: | JA |
| RoHS: | JA |
| MTTF: | 1476,65 Jahre |
| WHG certification: | Auf Anfrage |
