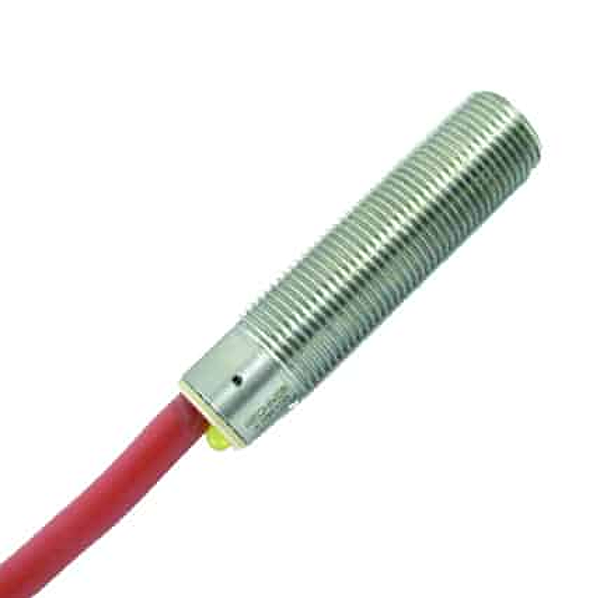

Image copyright: Rechner Sensors
Rechner Sensors 360100
MRS-10-300-S-M12-VAb-Z02-0
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Magneto-resistive Sensors. Series 300 • 10 – PNP. Housing M 12 x 1. Housing material: Stainless steel VA. Magneto-resisitive sensors detect ferromagnetic targets, such as gear, wheels, wipers, slitting discs, gear rods, etc. Contactless detection of rotary motion, therefore wear-free and, maintenance-free operation. Measuring range from 0 Hz up to 25 kHz. Ideal for the safe detection of, creeping movements as well as fast rotary motions. Measuring gear wheel modul size 0.7…4.00. Width of target gear wheel ≥ 10 mm
Downloads
Technical parameters
| Thread / Process connection: | M 12 x 1 |
| Housing material active surface: | Edelstahl Nr. 1.4305 |
| Housing material: | Edelstahl Nr. 1.4305 |
| Housing material lid: | Edelstahl Nr. 1.4305 |
| Electrical version: | 3-Leiter DC |
| Operating current (Ie): | 0…250 mA |
| Voltage drop max. (Ud): | ≤ 2,5 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 0,5 Hz / 15 kHz |
| LEDdisplay: | Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67, IP 69K |
| Norm: | EN 60947-5-2 |
| Sensing dinstance Sn: | 1,5 mm |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -40 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Bündig |
| Output function: | Schließer |
| Output signal: | PNP |
| Cable length: | 2 m |
| Connection: | Silikon-Kabel, 3 x 0,34 mm² |
| CE: | JA |
| RoHS: | JA |
| MTTF: | 2406,41 Jahre |
| WHG certification: | Auf Anfrage |
