08400832963
KURT200-M12EB79-DPS-V2
Ultrasonic sensor
Name: | KURT200-M12EB79-DPS-V2 |
Order number: | 08400832963 |
Matchcode: | 9983-2963 |
art_schaltabstand_einstellbar: | yes |
Switch type: | Switchable |
Signal Type: | DC PNP |
Connection: | Connector |
Connection diagramm: | |

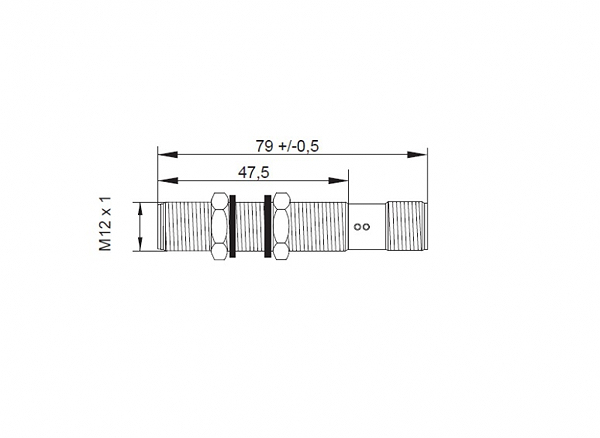

Dimension (in mm): | M12 x 79 |
Signal type: | Taster |
Operating voltage: | 10 - 30 V |
Max. load current: | 100 mA |
No load current: | < 35 mA |
Switching frequency: | 30 Hz |
Operating temperature: | -15 ° C to 70 ° C |
Repeat accuracy: | +/- 0,3 mm |
Operating state: | LED |
Swiching state: | LED |
Carrier frequency: | 400 kHz |
Sound beam: | ca. 8° |
Measuring range: | 2,5-20 cm |
Short-circuit proof: | yes |
Overload protection: | yes |
Reverse voltage protection: | yes |
Protection category: | IP67 |
EMC-level: | DIN EN 60947-5-2:2008 |
Housing material: | Plastic |
Termination: | Connector M12 4pol |
Errors and omissions exceptet: |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
